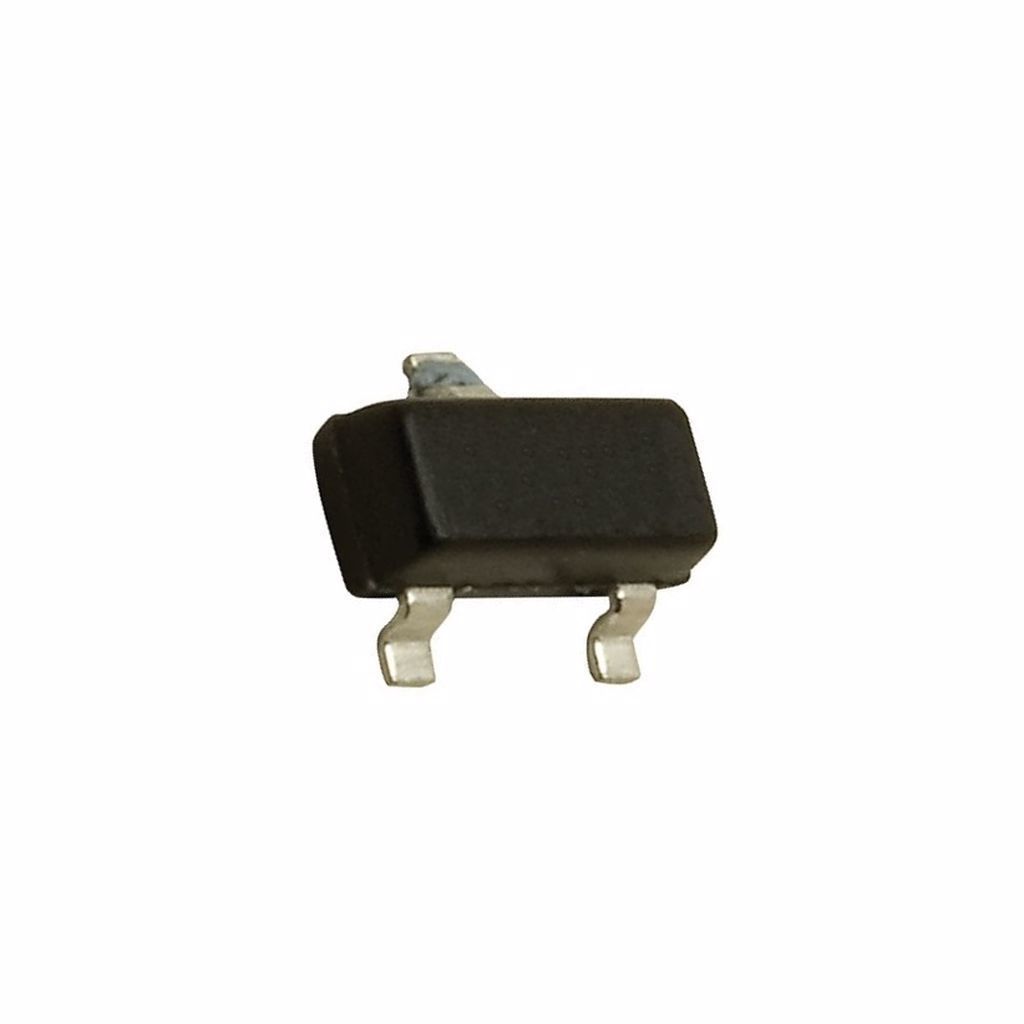

BC847B - (1F) SOT-23 100mA 45V NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
1075 Adet
Fiyat
0,05 USD + KDV
*0,19 TL den başlayan taksitlerle!
2,07 TL
BC847B (1F) SOT-23 100MA 45V NPN TRANSISTOR
BC847B
Type Designator: BC847B
SMD Transistor Code: 1F_1Fp_1Fs_1Ft_1FW_8BB_G1F_K1F_RRB
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.15 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 45 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 100 MHz
Collector Capacitance (Cc): 6 pF
Forward Current Transfer Ratio (hFE), MIN: 200
Package: SOT23
