BC640 TO-92 1A 100V 0.8W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
10000 Adet
Fiyat
0,18 USD + KDV
*0,69 TL den başlayan taksitlerle!
7,42 TL
BC640 TO-92 1A 100V 0.8W PNP TRANSISTOR
BC640
Type Designator: BC640
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 1 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN: 40

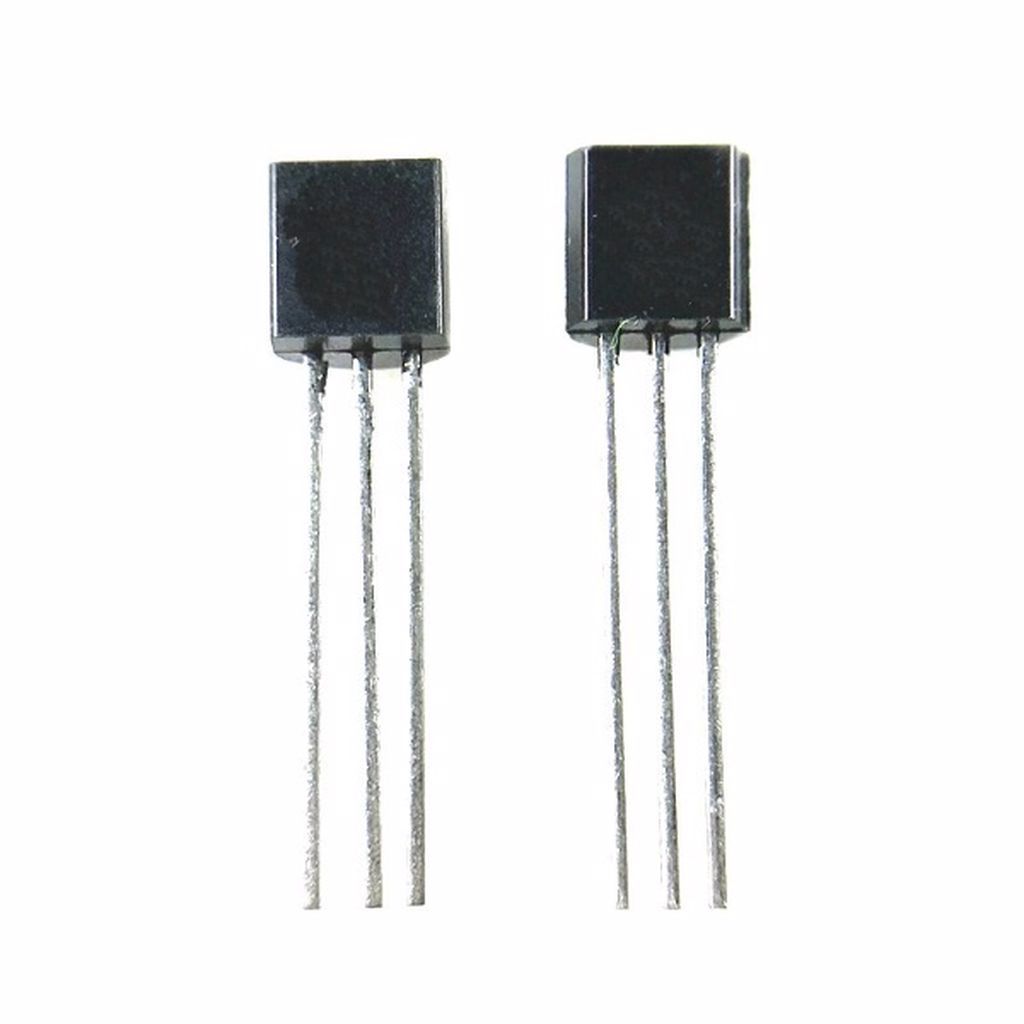

Package: TO92
