BC637-16 TO-92 1A 60V 1W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
85 Adet
Fiyat
0,09 USD + KDV
*0,35 TL den başlayan taksitlerle!
3,73 TL
BC637-16 TO-92 1A 60V 1W NPN TRANSISTOR
BC637
Type Designator: BC637
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 1 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 60 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN: 40

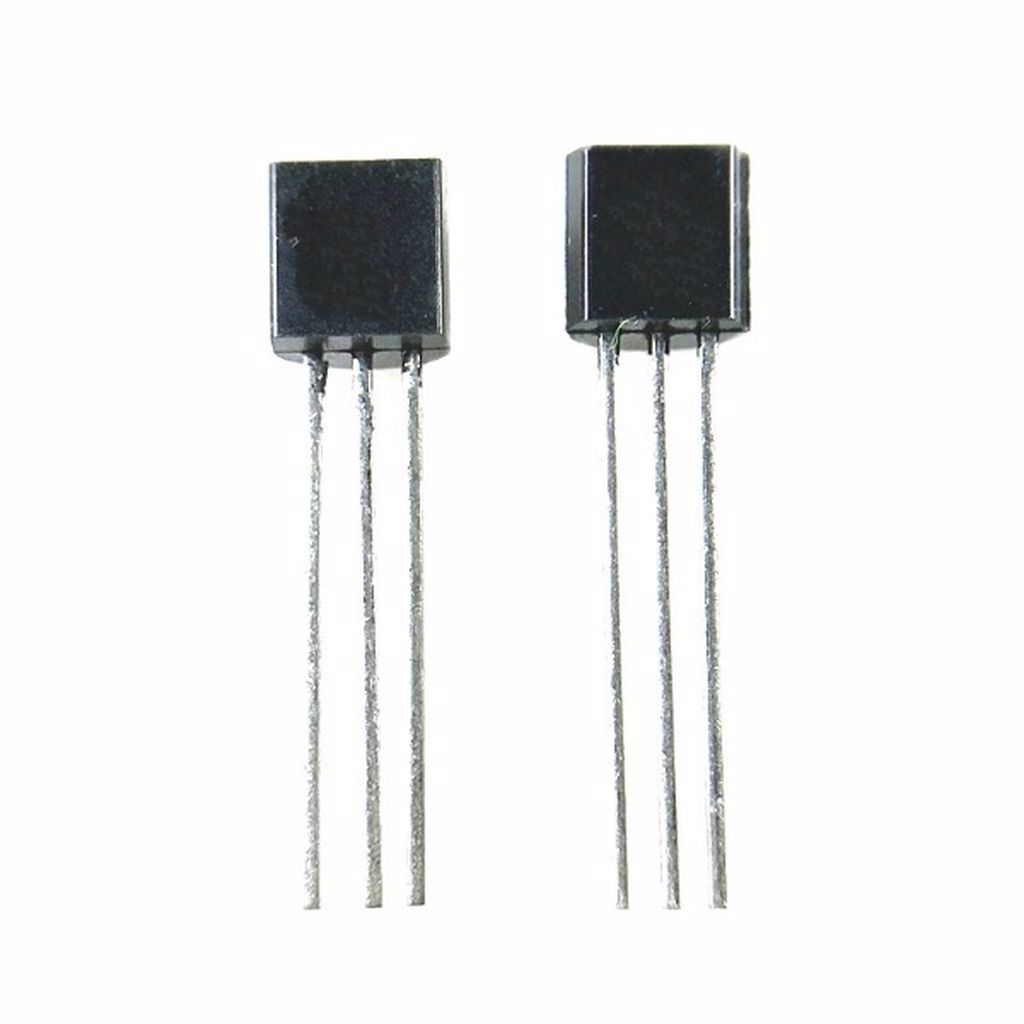

Package: TO92
