BC327-40TA TO-92 0.8A 50V 0.5W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
0,04 USD + KDV
*0,15 TL den başlayan taksitlerle!
1,66 TL
BC327-40TA TO-92 0.8A 50V 0.5W PNP TRANSISTOR
BC327
Type Designator: BC327
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.5 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 45 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.8 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 60 MHz
Collector Capacitance (Cc): 18 pF
Forward Current Transfer Ratio (hFE), MIN: 63

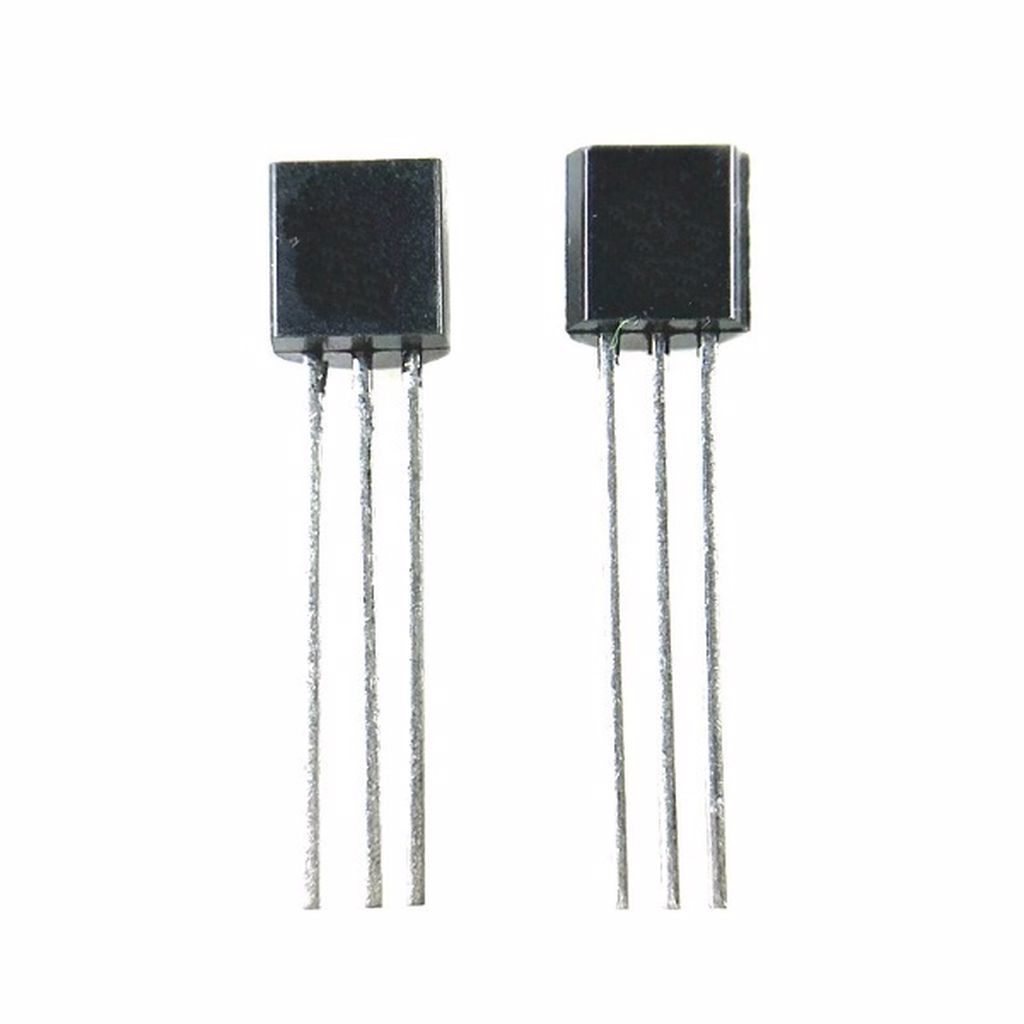

Package: TO92
