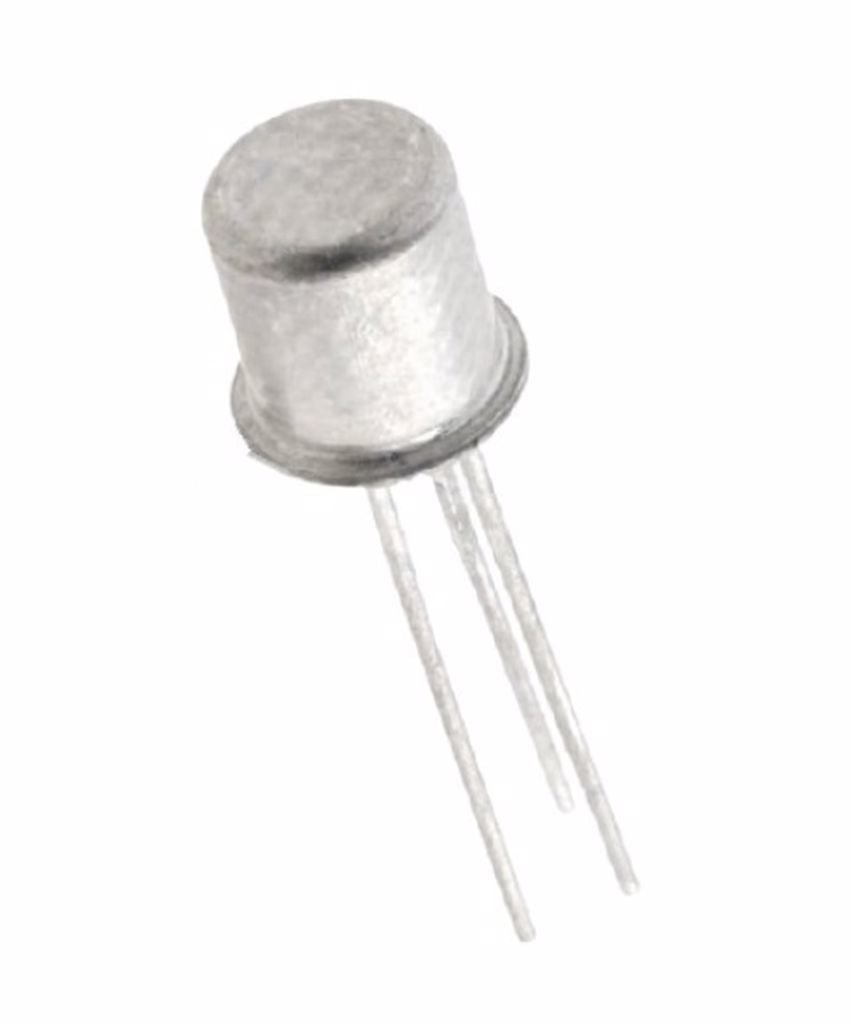

BC179 TO-18 0.05A 25V 0.3W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
133 Adet
Fiyat
0,40 USD + KDV
*1,54 TL den başlayan taksitlerle!
16,57 TL
BC179 TO-18 0.05A 25V 0.3W PNP TRANSISTOR
BC179
Type Designator: BC179
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.3 W
Maximum Collector-Base Voltage |Vcb|: 25 V
Maximum Collector-Emitter Voltage |Vce|: 20 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.05 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 100 MHz
Collector Capacitance (Cc): 7 pF
Forward Current Transfer Ratio (hFE), MIN: 70
Package: TO18
