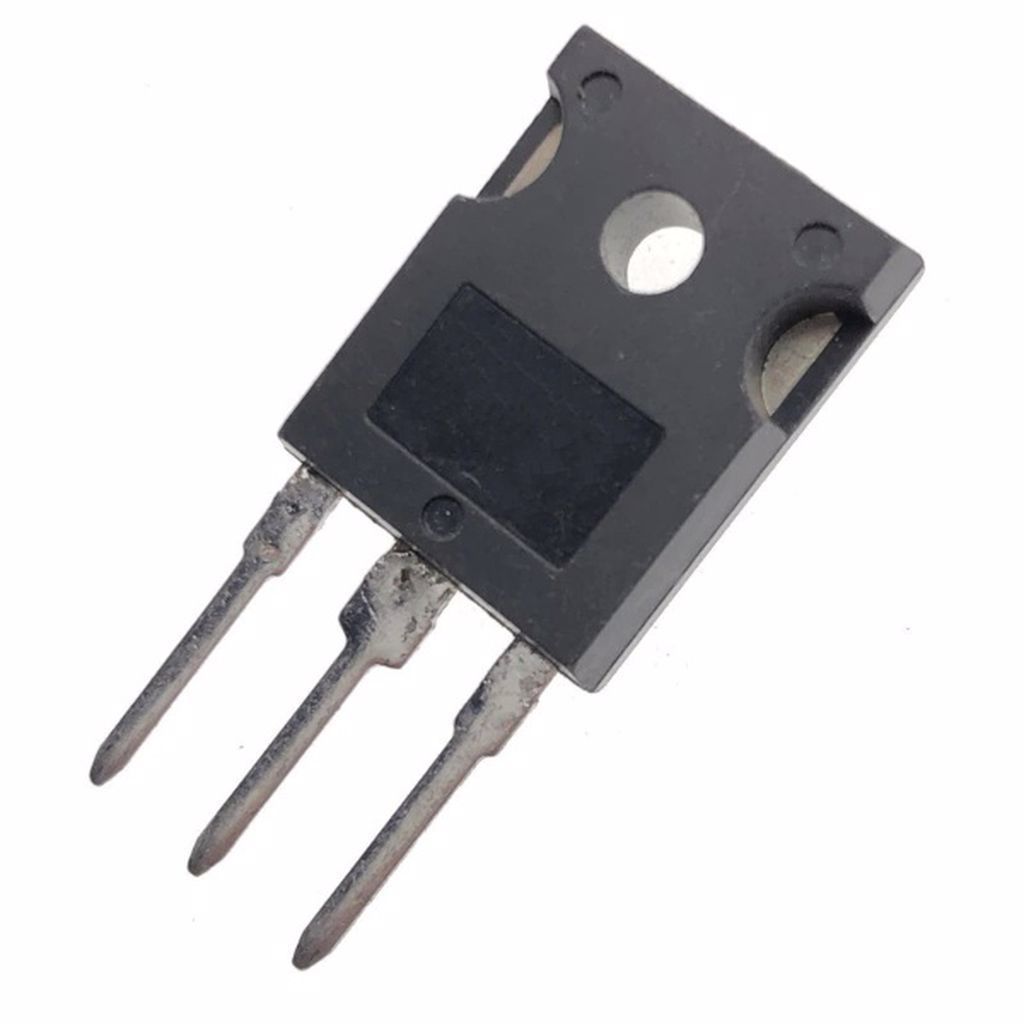

B KALİTE - STW15NB50 TO-247 14.6A 500V 190W 0.33Ω N-CHANNEL MOSFET - ONLİNE ÖZEL FİYAT
STW15NB50 MOSFET
Type Designator: STW15NB50
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 190 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 14.6 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 60 nC
Rise Time (tr): 14 nS
Drain-Source Capacitance (Cd): 330 pF
Maximum Drain-Source On-State Resistance (Rds): 0.36 Ohm
Package: TO-247
