GT4501 - (AP4501GM, A10122) SOIC-8 7(5.3)A 30V 2W DUAL N AND P-CHANNEL MOSFET
0 - Yorum
Kategori
Kalan Adet
40 Adet
Fiyat
0,78 USD + KDV
*3,00 TL den başlayan taksitlerle!
32,30 TL
GT4501 - (AP4501GM, A10122) SOIC-8 7(5.3)A 30V 2W DUAL N AND P-CHANNEL MOSFET
AP4501GM MOSFET
Type Designator: AP4501GM
Type of Transistor: MOSFET
Type of Control Channel: NP -Channel
Maximum Power Dissipation (Pd): 2 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 7(5.3) A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 5(10) nS
Drain-Source Capacitance (Cd): 150(80) pF
Maximum Drain-Source On-State Resistance (Rds): 0.028(0.05) Ohm

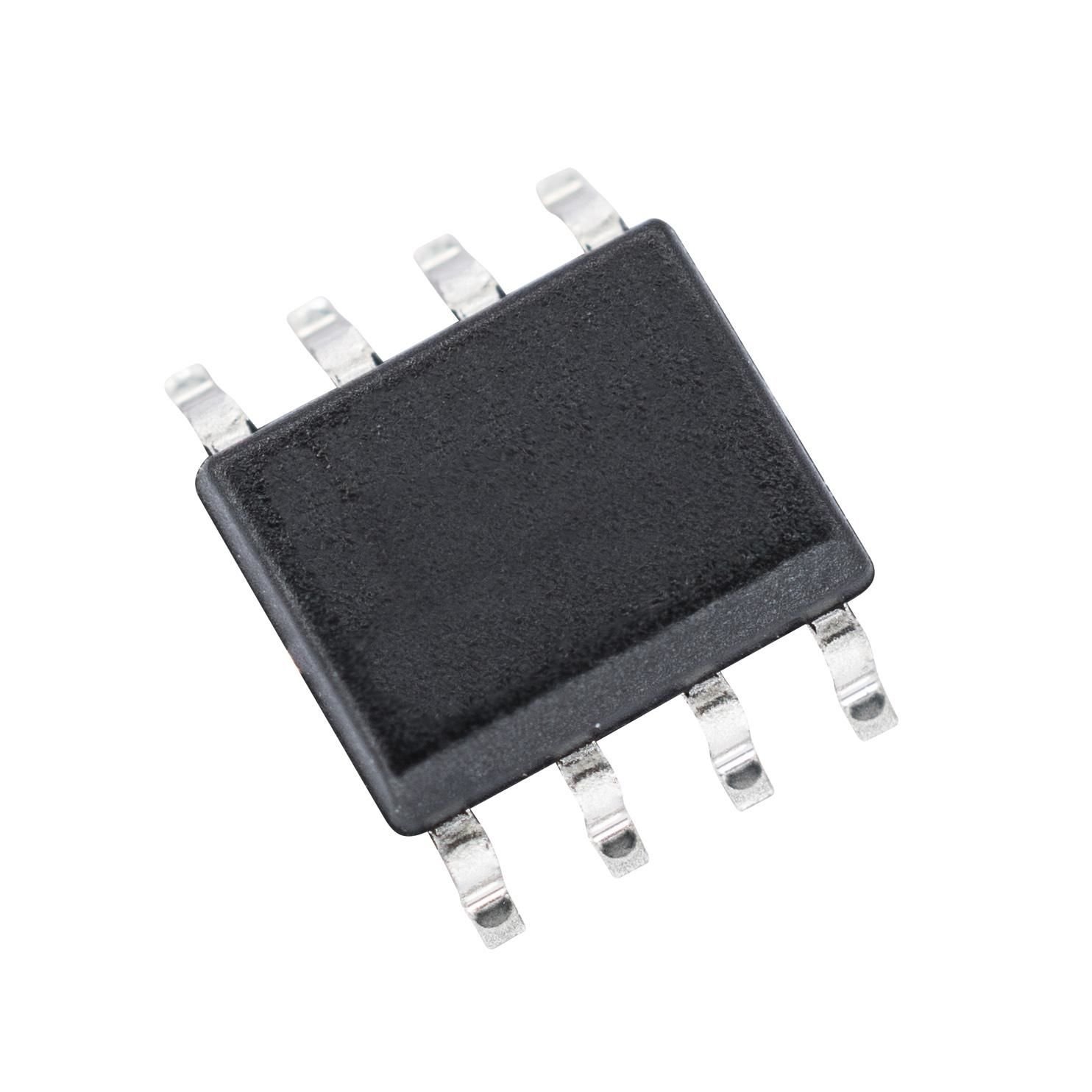

Package: SO8
