AOP605 - (P605) DIP-8 30V 7.5A N&P CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
15 Adet
Fiyat
1,25 USD + KDV
*4,81 TL den başlayan taksitlerle!
51,77 TL
AOP605
Type Designator: AOP605
Type of Transistor: MOSFET
Type of Control Channel: NP -Channel
Maximum Power Dissipation (Pd): 2.5 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3 V
Maximum Drain Current |Id|: 7.5(6.6) A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 4.1(5.7) nS
Drain-Source Capacitance (Cd): 102(190) pF
Maximum Drain-Source On-State Resistance (Rds): 0.028(0.035) Ohm

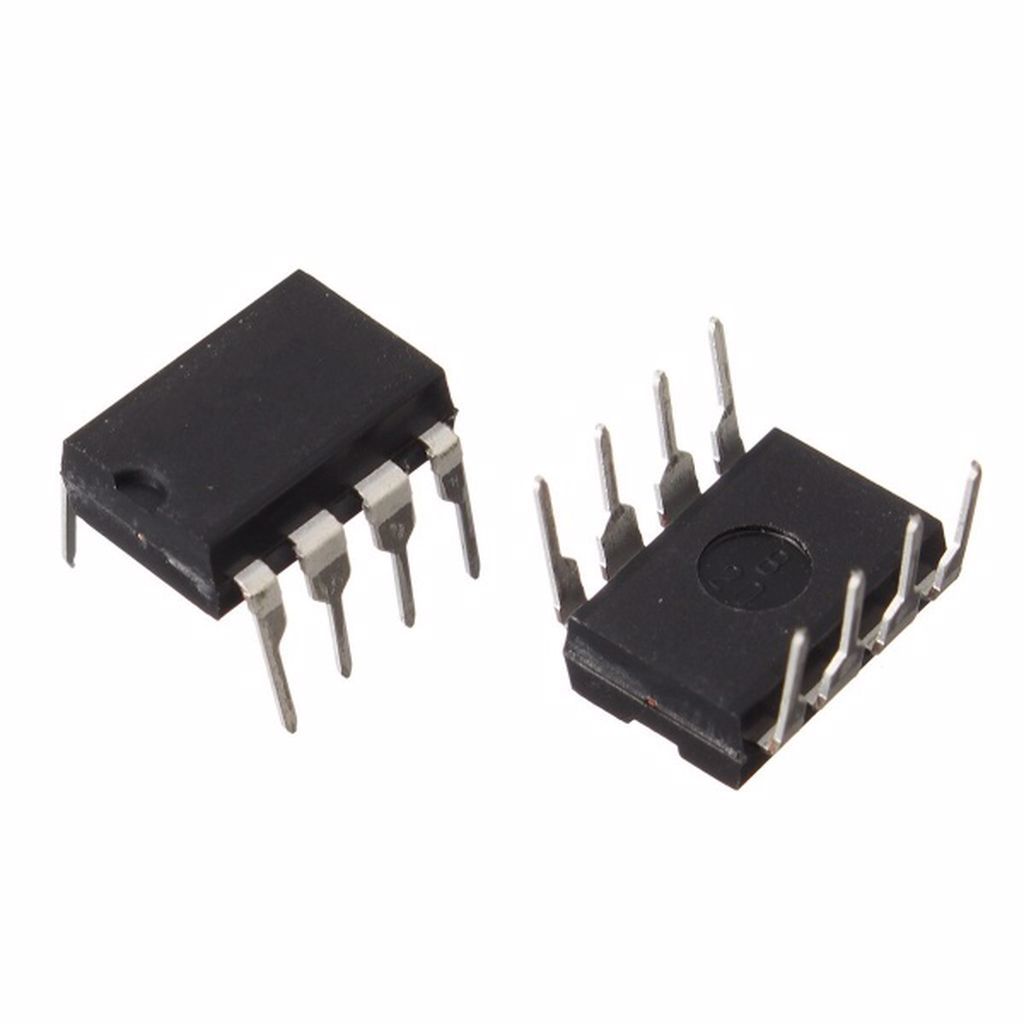

Package: PDIP-8
Bu ürüne ilk yorumu siz yapın!
