AO4614B SO-8 6(5)A 40V MOSFET
0 - Yorum
Kategori
Kalan Adet
2900 Adet
Fiyat
0,85 USD + KDV
*3,27 TL den başlayan taksitlerle!
35,20 TL
AO4614 MOSFET
Type Designator: AO4614
Type of Transistor: MOSFET
Type of Control Channel: NP -Channel
Maximum Power Dissipation (Pd): 2 W
Maximum Drain-Source Voltage |Vds|: 40 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 6(5) A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 3.3 nS
Drain-Source Capacitance (Cd): 95 pF
Maximum Drain-Source On-State Resistance (Rds): 0.031(0.045) Ohm

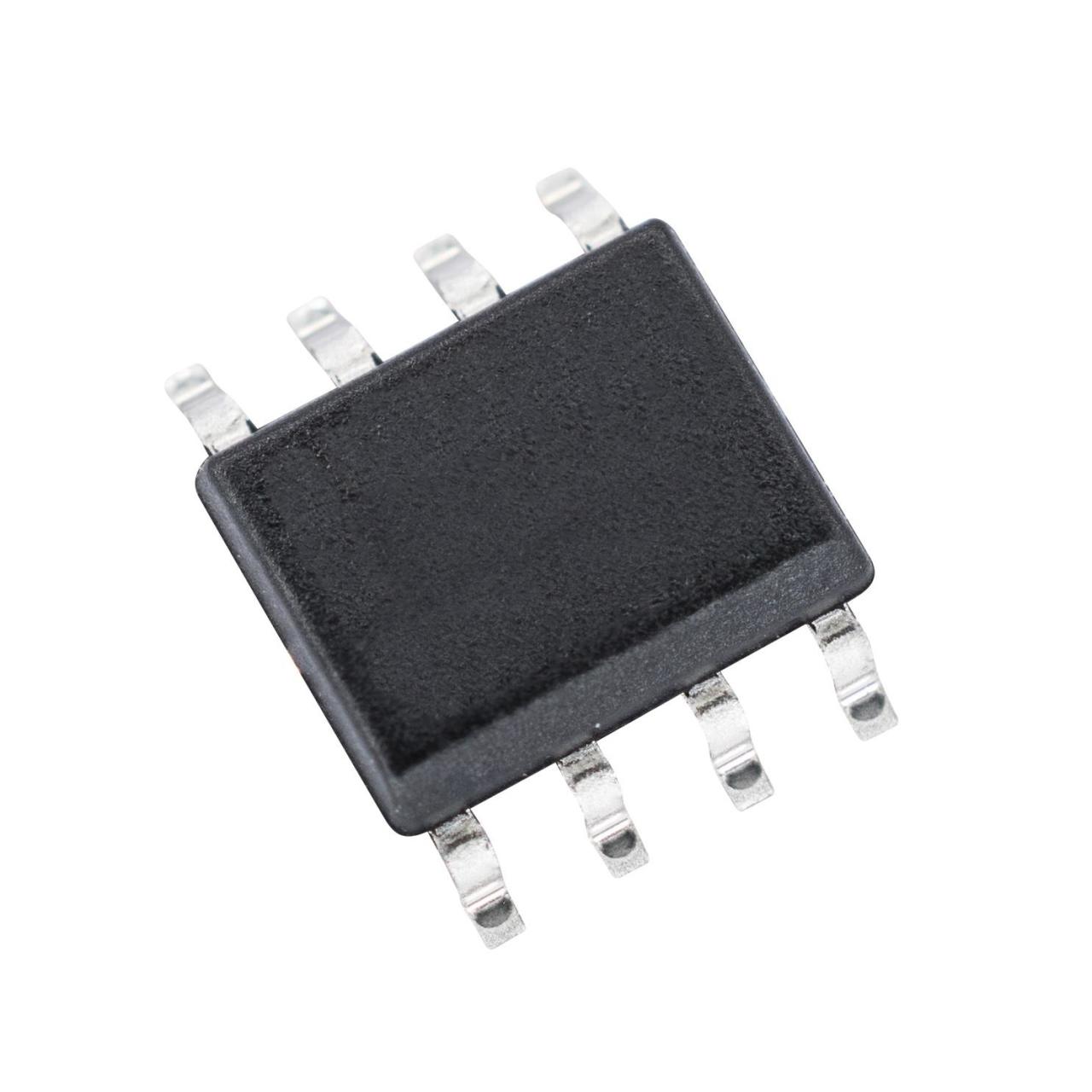

Package: SOIC8
Bu ürüne ilk yorumu siz yapın!
