AO4606 SO-8 6.5A 30V P+N CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
392 Adet
Fiyat
0,65 USD + KDV
*2,50 TL den başlayan taksitlerle!
26,92 TL
AO4606
Type Designator: AO4606
Type of Transistor: MOSFET
Type of Control Channel: NP -Channel
Maximum Power Dissipation (Pd): 2 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.4 V
Maximum Drain Current |Id|: 6(6.5) A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 2.5(6) nS
Drain-Source Capacitance (Cd): 45(140) pF
Maximum Drain-Source On-State Resistance (Rds): 0.03(0.028) Ohm

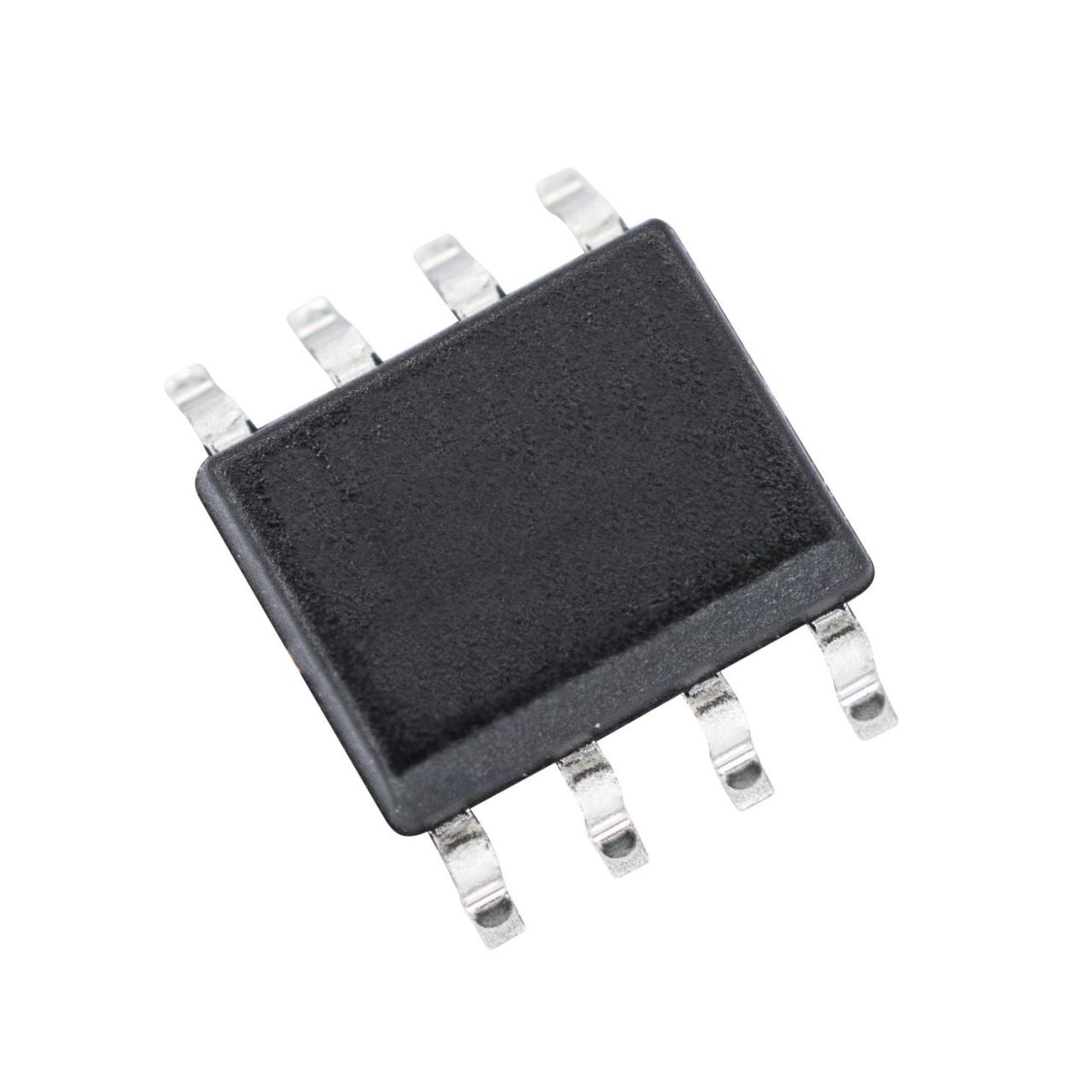

Package: SO-8
