2SK3677 TO-220F 700V 12A 95W N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
16 Adet
Fiyat
3,30 USD + KDV
*12,71 TL den başlayan taksitlerle!
136,67 TL

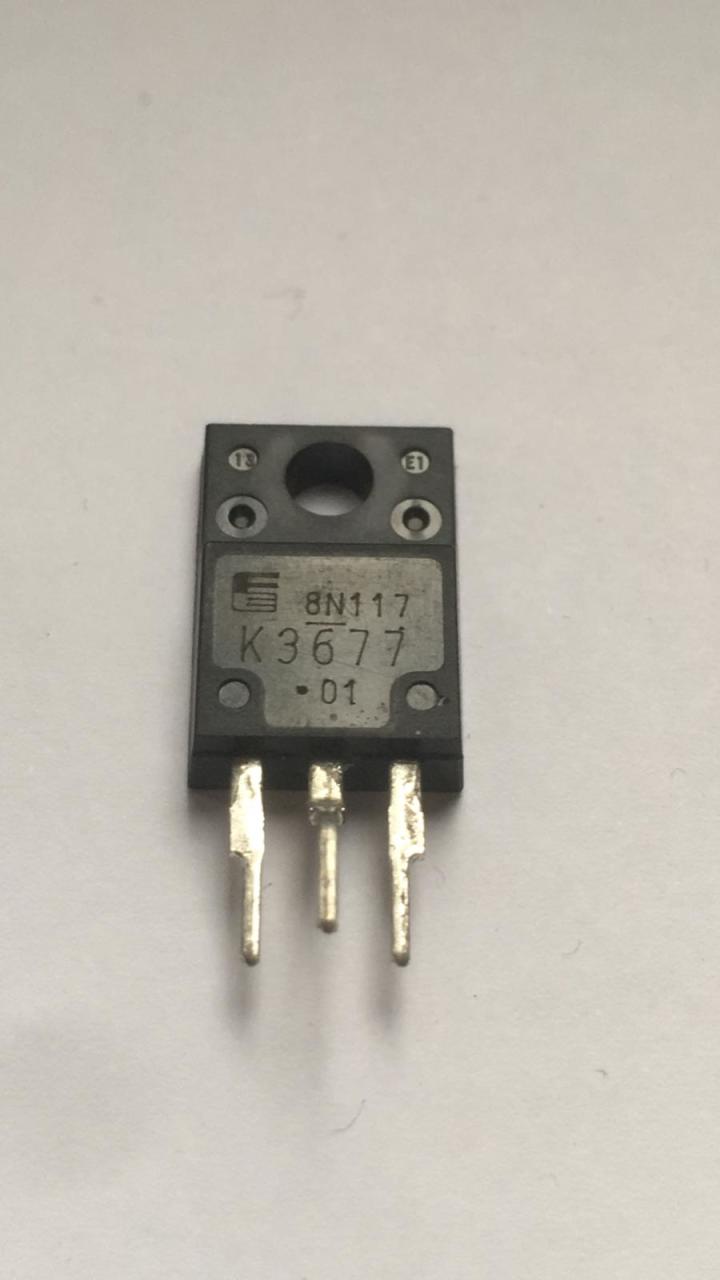

2SK3677 TO-220F 700V 12A 95W N-CHANNEL MOSFET TRANSISTOR
2SK3677
Type Designator: 2SK3677-01MR
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 95 W
Maximum Drain-Source Voltage |Vds|: 700 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 12 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 7.5 nS
Drain-Source Capacitance (Cd): 170 pF
Maximum Drain-Source On-State Resistance (Rds): 0.93 Ohm
Package: TO220F
Bu ürüne ilk yorumu siz yapın!
