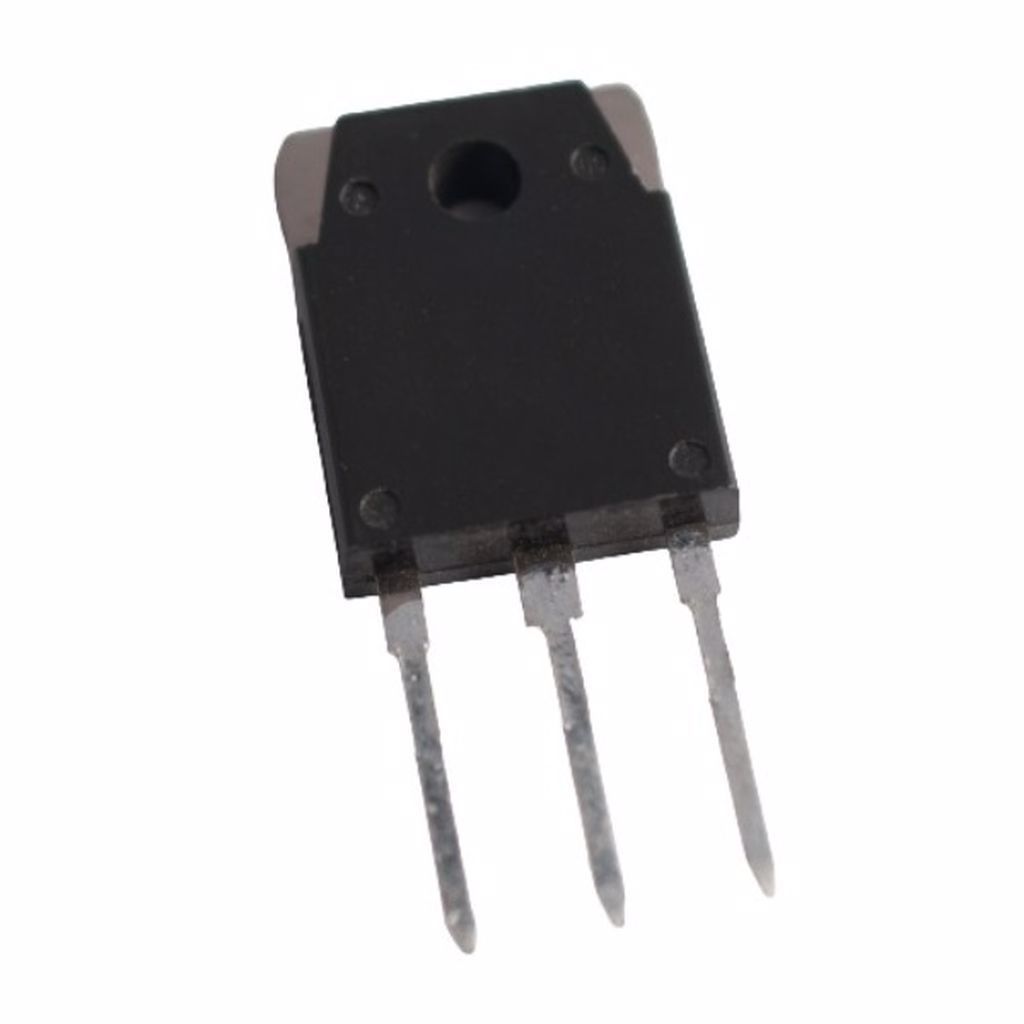

2SK3271 TO-3P 100A 60V 155W N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
13 Adet
Fiyat
7,50 USD + KDV
*28,88 TL den başlayan taksitlerle!
310,60 TL
2SK3271 TO-3P 100A 60V 155W N-CHANNEL MOSFET TRANSISTOR
2SK3271
Type Designator: 2SK3271-01
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 155 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3.5 V
Maximum Drain Current |Id|: 100 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 200 nS
Drain-Source Capacitance (Cd): 1250 pF
Maximum Drain-Source On-State Resistance (Rds): 0.0065 Ohm
Package: TO3P
