2SK3125 TO-268 N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
13 Adet
Fiyat
2,40 USD + KDV
*9,24 TL den başlayan taksitlerle!
99,39 TL

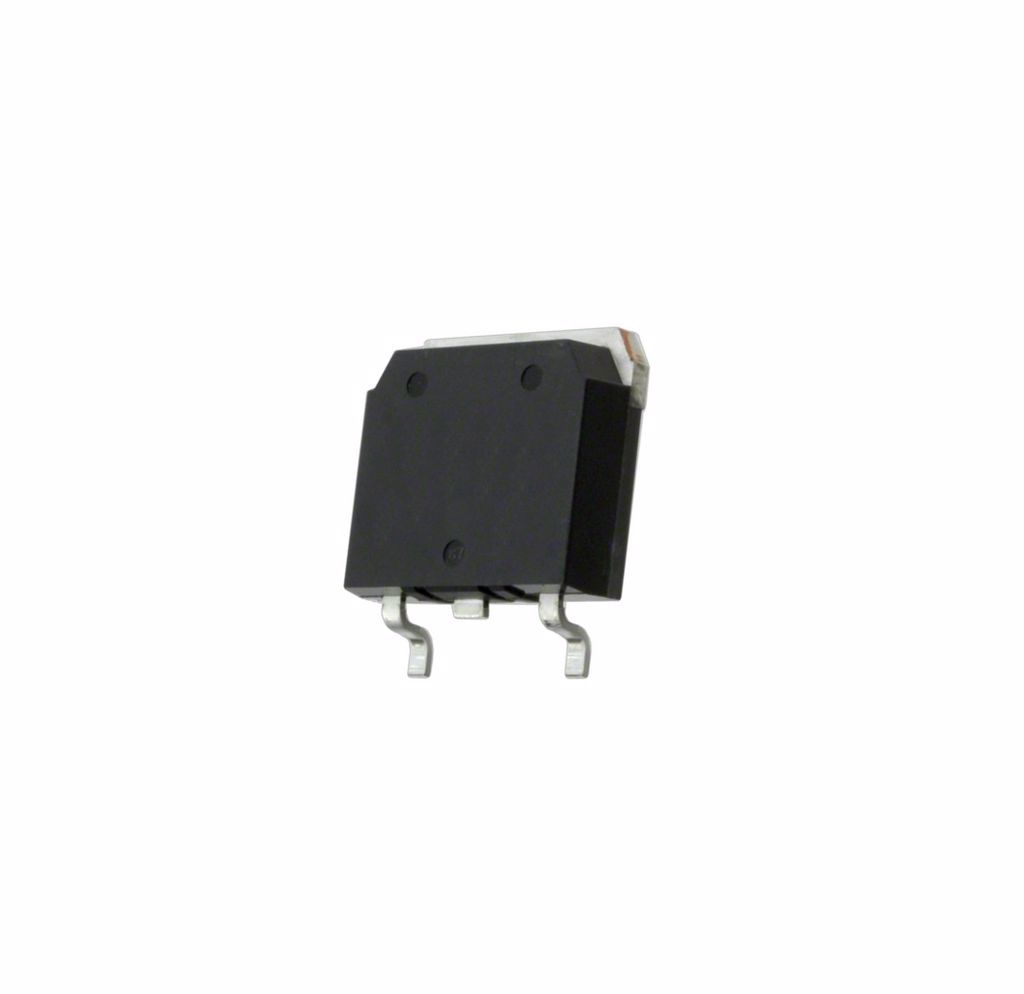

2SK3125 TO-268 N-CHANNEL MOSFET TRANSISTOR
2SK3125
Type Designator: 2SK3125
Marking Code: K3125
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 150 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3 V
Maximum Drain Current |Id|: 70 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 130 nC
Rise Time (tr): 25 nS
Drain-Source Capacitance (Cd): 2300 pF
Maximum Drain-Source On-State Resistance (Rds): 0.007 Ohm
Package: TO3P
Bu ürüne ilk yorumu siz yapın!
