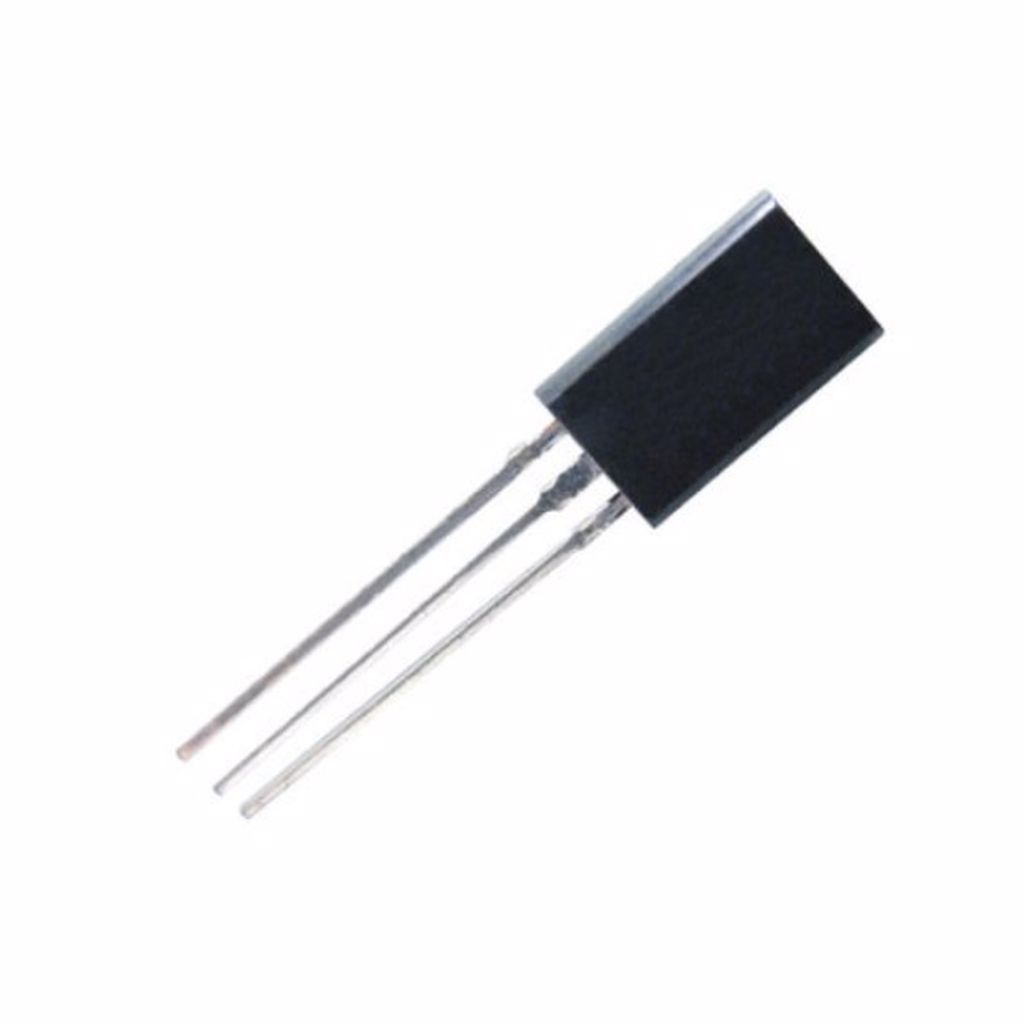

2SK2998 TO-92L 500V 0.5A 1W N-CHANNEL MOSFET TRANSISTOR
2SK2998
Type Designator: 2SK2998
Marking Code: K2998
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 1 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 0.5 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 3.8 nC
Rise Time (tr): 11 nS
Drain-Source Capacitance (Cd): 25 pF
Maximum Drain-Source On-State Resistance (Rds): 18 Ohm
Package: TO92MOD
