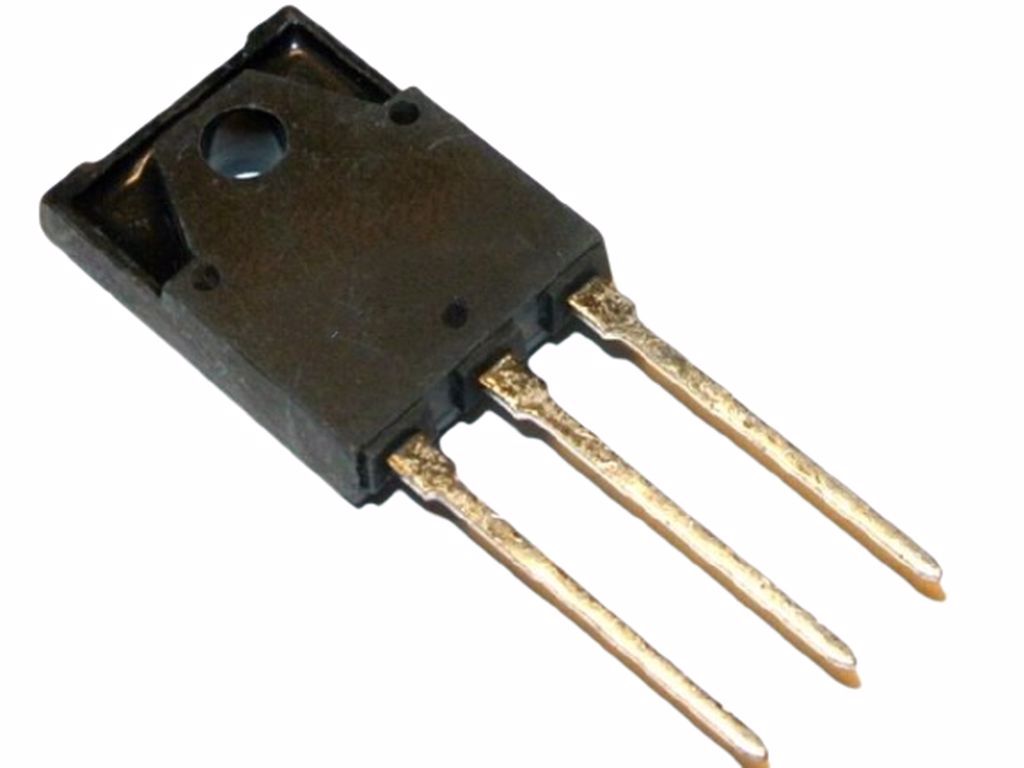

2SK2953 TO-3P 600V 15A 90W N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
10 Adet
Fiyat
3,40 USD + KDV
*13,09 TL den başlayan taksitlerle!
140,81 TL
2SK2953 TO-220F 600V 15A 90W N-CHANNEL MOSFET TRANSISTOR
2SK2953
Type Designator: 2SK2953
Marking Code: K2953
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 90 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 15 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 80 nC
Rise Time (tr): 50 nS
Drain-Source Capacitance (Cd): 300 pF
Maximum Drain-Source On-State Resistance (Rds): 0.4 Ohm
Package: TO3P
