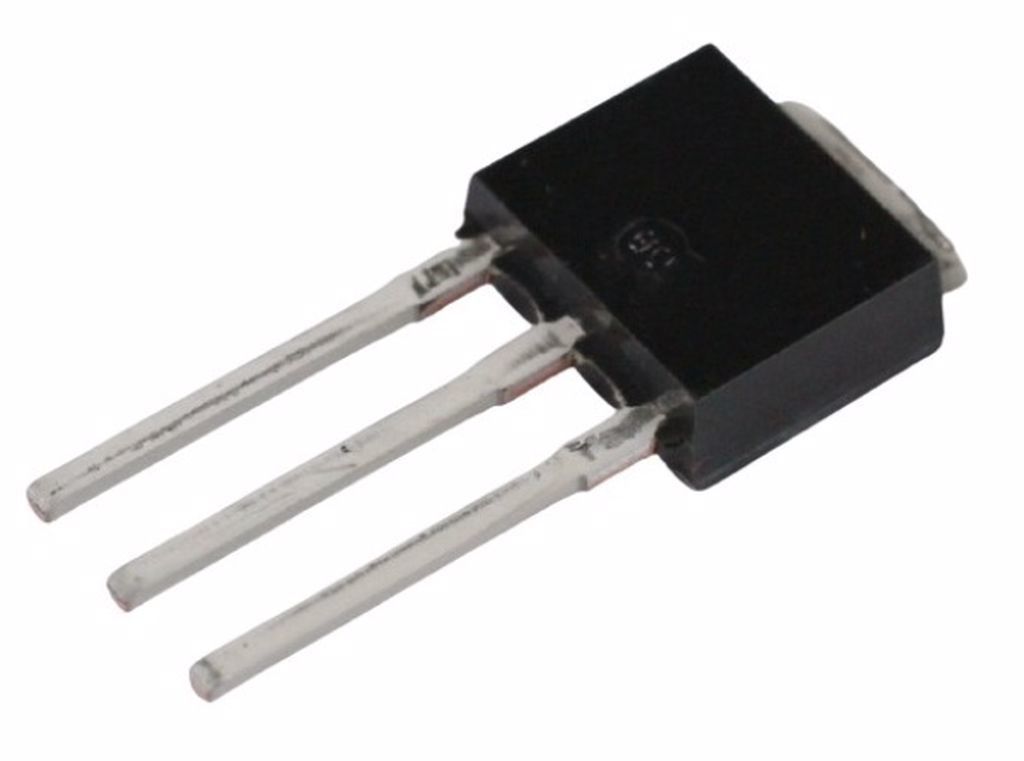

2SK2925 TO-251 60V 10A 20W N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
18 Adet
Fiyat
1,50 USD + KDV
*5,78 TL den başlayan taksitlerle!
62,12 TL
2SK2925 TO-252 60V 10A 20W N-CHANNEL MOSFET TRANSISTOR
2SK2925
Type Designator: 2SK2925
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 20 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 10 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 55 nS
Drain-Source Capacitance (Cd): 190 pF
Maximum Drain-Source On-State Resistance (Rds): 0.08 Ohm
Package: DPAK
