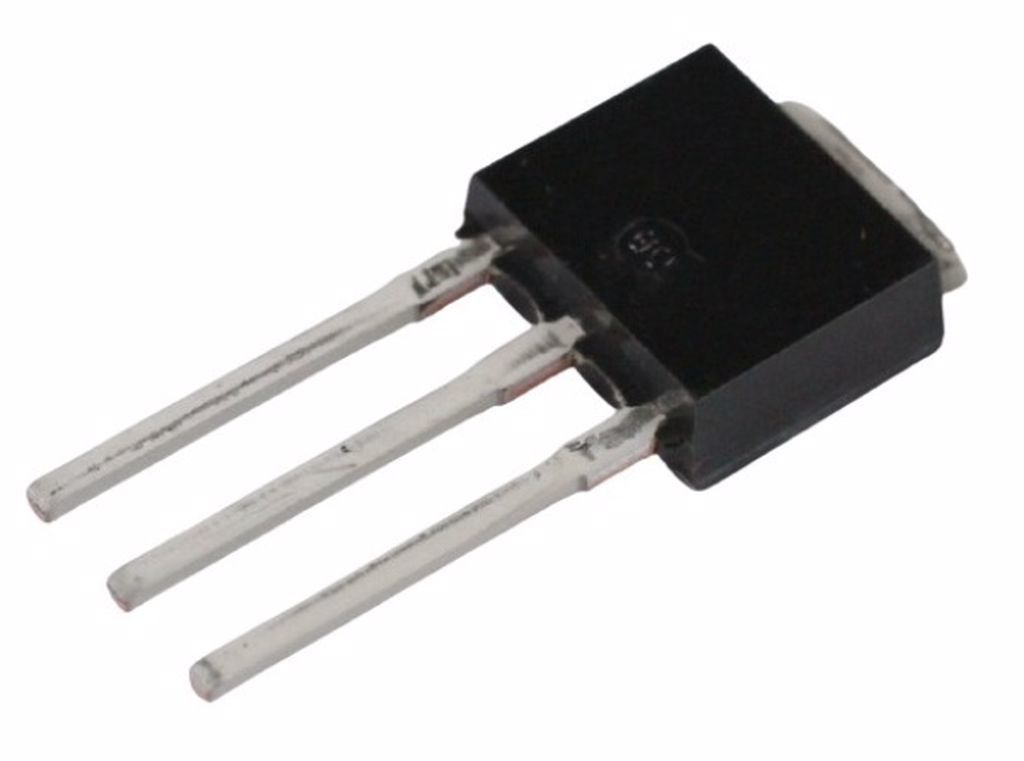

2SK2865 TO-251 2A 600V 20W N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
33 Adet
Fiyat
0,90 USD + KDV
*3,47 TL den başlayan taksitlerle!
37,27 TL
2SK2865 TO-251 2A 600V 20W N-CHANNEL MOSFET TRANSISTOR
2SK2865
Type Designator: 2SK2865
Marking Code: K2865
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 20 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 2 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 9 nC
Rise Time (tr): 15 nS
Drain-Source Capacitance (Cd): 120 pF
Maximum Drain-Source On-State Resistance (Rds): 5 Ohm
Package: NEW PWMOLD
