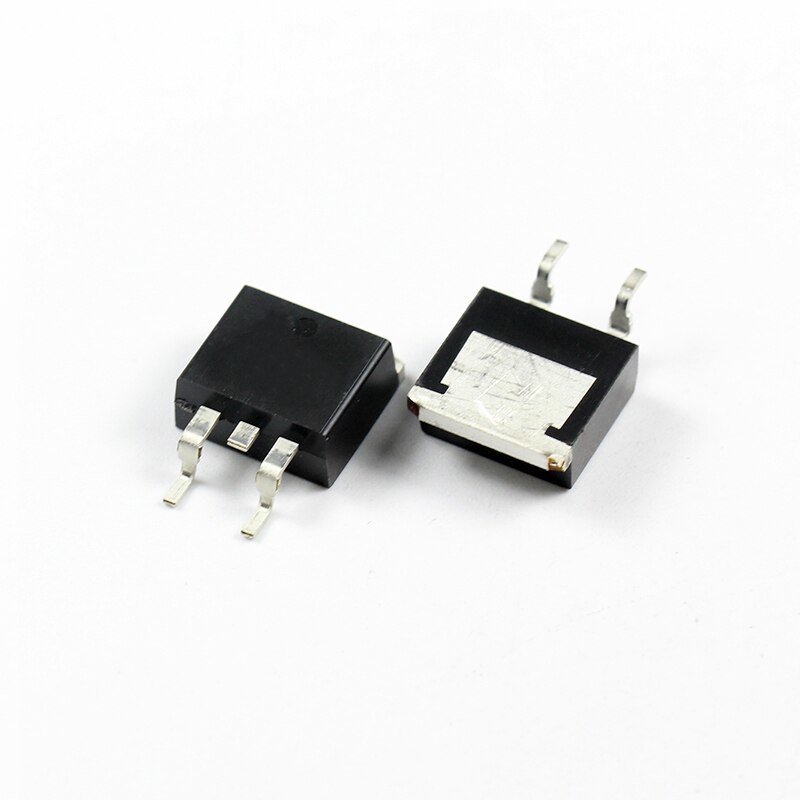

2SK2777 TO-263 600V 6A 65W N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
16 Adet
Fiyat
2,90 USD + KDV
*11,17 TL den başlayan taksitlerle!
120,10 TL
2SK2777 TO-263 600V 6A 65W N-CHANNEL MOSFET TRANSISTOR
2SK2777
Type Designator: 2SK2777
Marking Code: K2777
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 65 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 6 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 30 nC
Rise Time (tr): 25 nS
Drain-Source Capacitance (Cd): 400 pF
Maximum Drain-Source On-State Resistance (Rds): 1.25 Ohm
