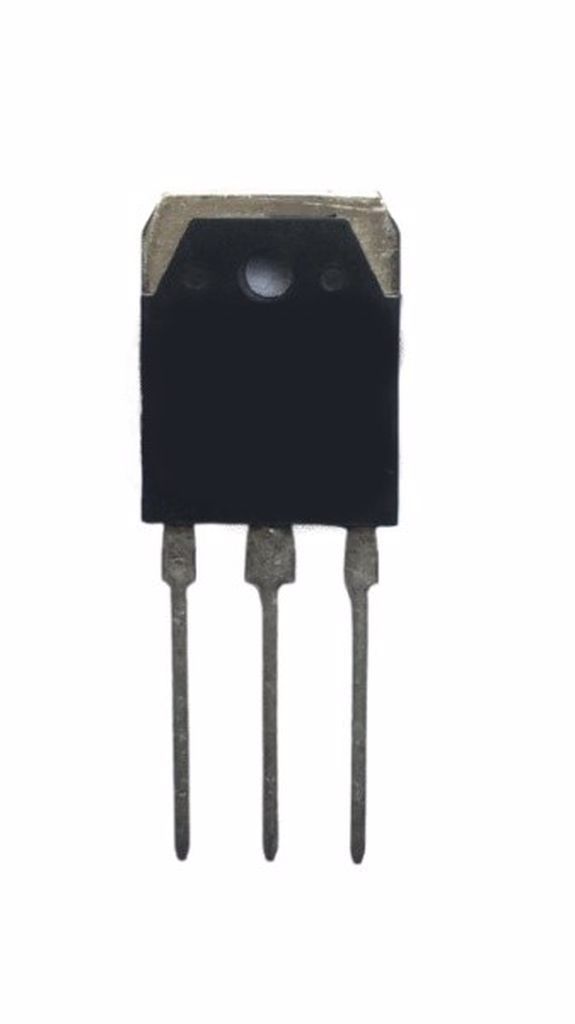

2SK2745 TO-3P 50V 50A 150W N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
4 Adet
Fiyat
1,98 USD + KDV
*8,38 TL den başlayan taksitlerle!
90,09 TL
2SK2745 TO-3P 50V 50A 150W N-CHANNEL MOSFET TRANSISTOR
2SK2745
Type Designator: 2SK2745
Marking Code: K2745
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 150 W
Maximum Drain-Source Voltage |Vds|: 50 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2 V
Maximum Drain Current |Id|: 50 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 130 nC
Rise Time (tr): 25 nS
Drain-Source Capacitance (Cd): 2000 pF
Maximum Drain-Source On-State Resistance (Rds): 0.0095 Ohm
Package: TO3P
