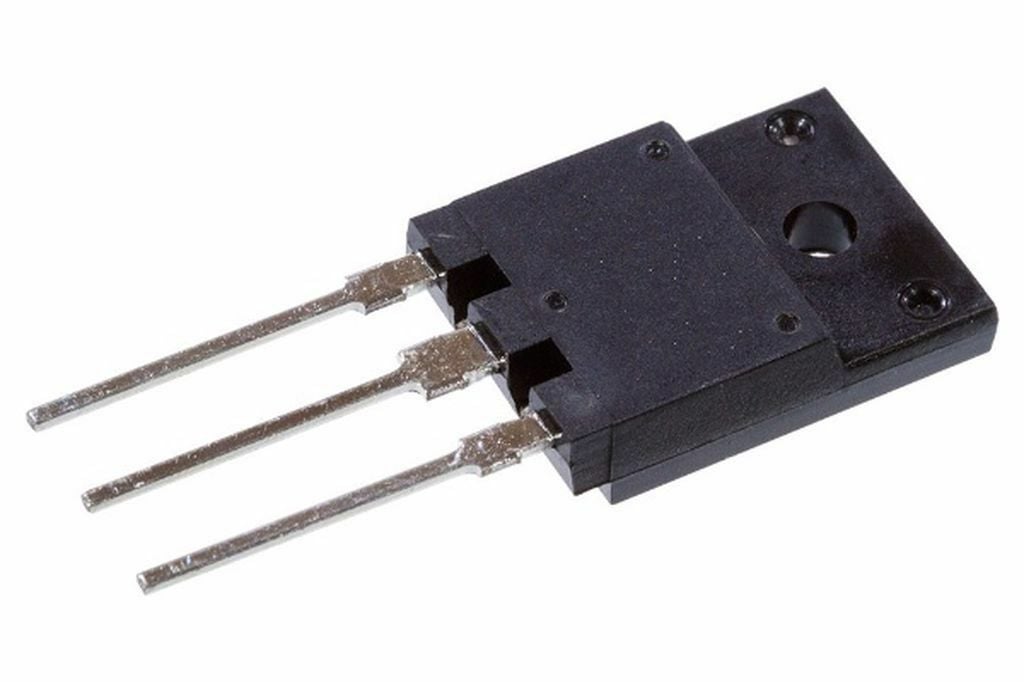

2SK2655-01R TO-3PML 8A 900V 100W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
15 Adet
Fiyat
4,40 USD + KDV
*16,87 TL den başlayan taksitlerle!
181,49 TL
G7d,p
L2SK2655-01R TO-3PML 8A 900V 100W NPN TRANSISTOR
L2SK2655-01R TO-3PML 8A 900V 100W NPN TRANSISTOR
2SK2655-01R MOSFET
Type Designator: 2SK2655-01R
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 100 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 8 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 120 nS
Drain-Source Capacitance (Cd): 180 pF
Maximum Drain-Source On-State Resistance (Rds): 1.48 Ohm
Package: TO-3PF
