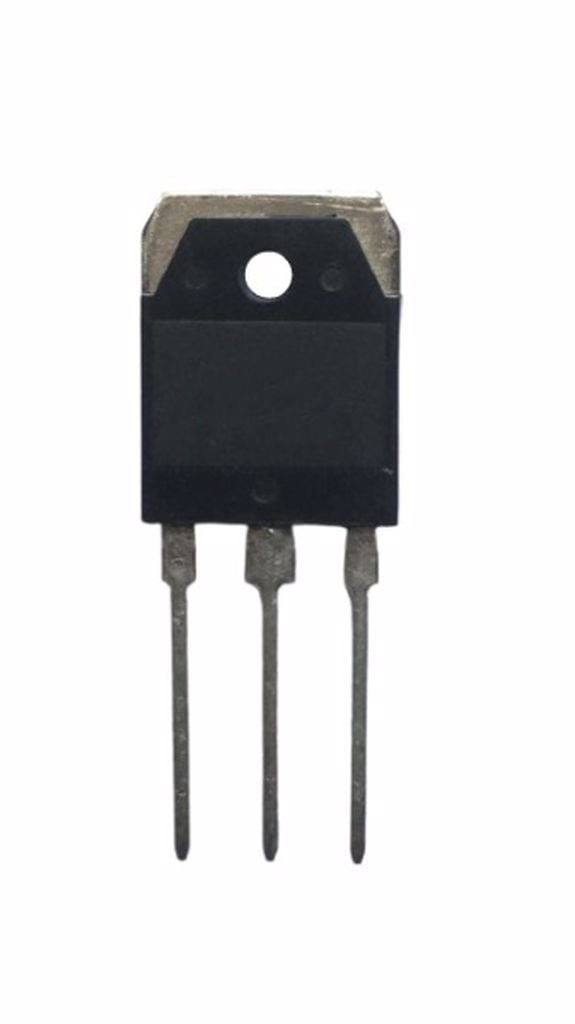

2SK2610 TO-3P 900V 5A N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
190 Adet
Fiyat
1,95 USD + KDV
*7,51 TL den başlayan taksitlerle!
80,76 TL
2SK2610
Type Designator: 2SK2610
Marking Code: K2610
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 150 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 5 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 45 nC
Rise Time (tr): 40 nS
Drain-Source Capacitance (Cd): 120 pF
Maximum Drain-Source On-State Resistance (Rds): 2.5 Ohm
Package: TO3P
