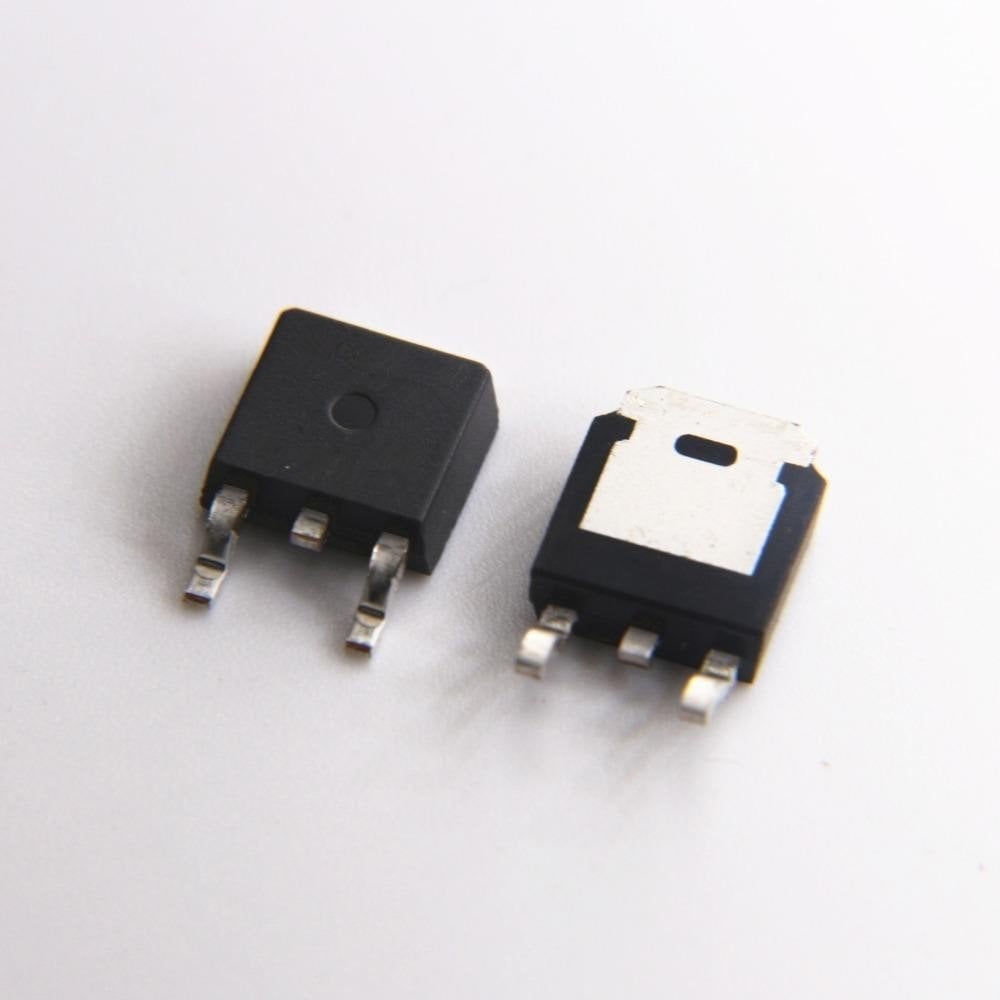

2SK2530 TO-252 2A 250V 20W N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
20 Adet
Fiyat
1,85 USD + KDV
*7,12 TL den başlayan taksitlerle!
76,62 TL
2SK2530 TO-252 2A 250V 20W N-CHANNEL MOSFET TRANSISTOR
2SK2530
Type Designator: 2SK2530
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 20 W
Maximum Drain-Source Voltage |Vds|: 250 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 2 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 13 nS
Drain-Source Capacitance (Cd): 40 pF
Maximum Drain-Source On-State Resistance (Rds): 2 Ohm
Package: TP
