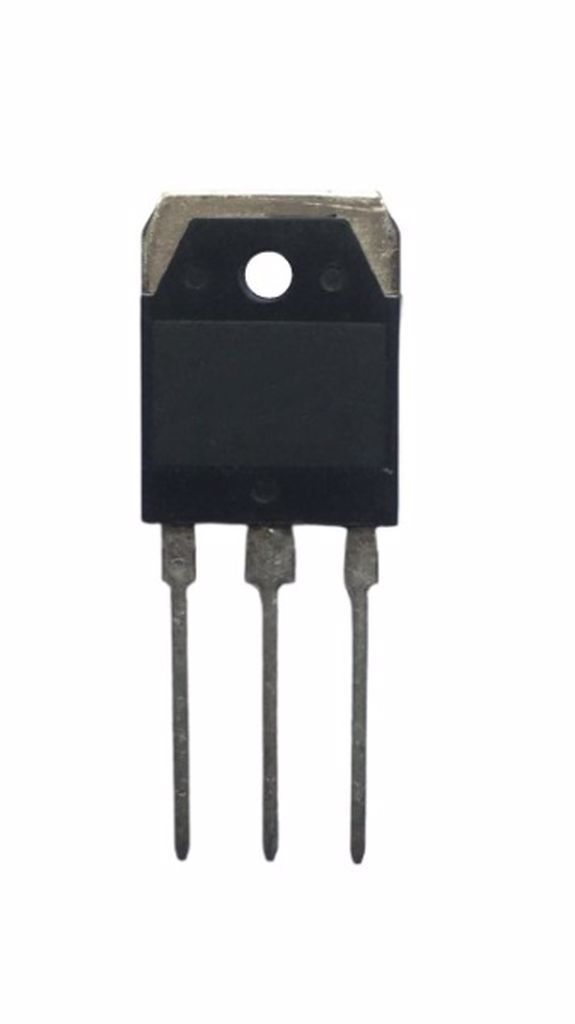

2SK2482 TO-3P 900V 5A 100W N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
26 Adet
Fiyat
3,50 USD + KDV
*13,48 TL den başlayan taksitlerle!
144,95 TL
2SK2482 TO-3P 900V 5A 100W N-CHANNEL MOSFET TRANSISTOR
2SK2482
Type Designator: 2SK2482
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 100 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 5 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 30 nC
Rise Time (tr): 8 nS
Drain-Source Capacitance (Cd): 130 pF
Maximum Drain-Source On-State Resistance (Rds): 4 Ohm
Package: TO3P
