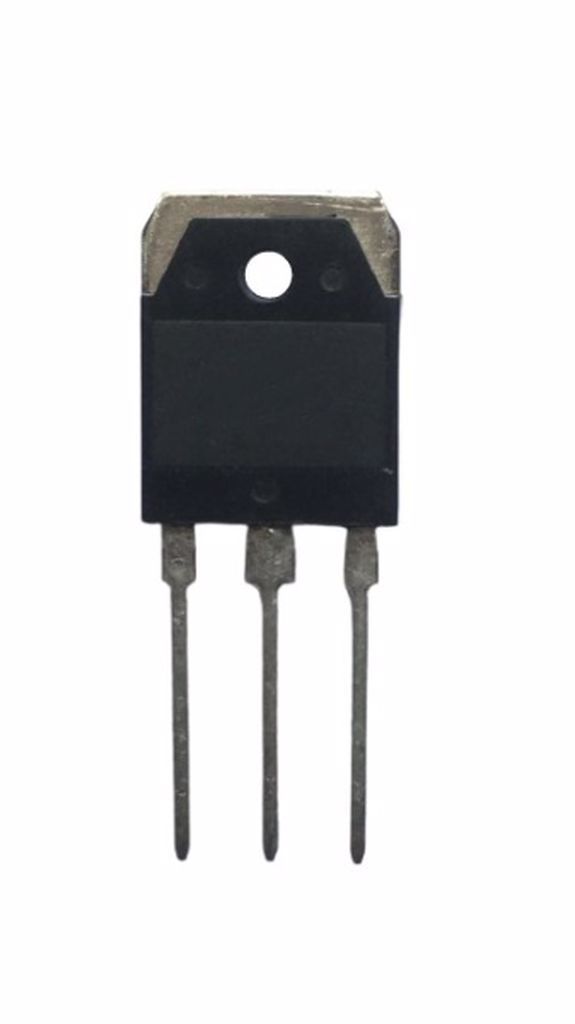

2SK2477 TO-3P 800V 10A 150W N-CHANNEL MOSFET TRANSISTOR
2SK2477
Type Designator: 2SK2477
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 150 W
Maximum Drain-Source Voltage |Vds|: 800 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 10 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 90 nC
Rise Time (tr): 30 nS
Drain-Source Capacitance (Cd): 440 pF
Maximum Drain-Source On-State Resistance (Rds): 1 Ohm
Package: TO3P
