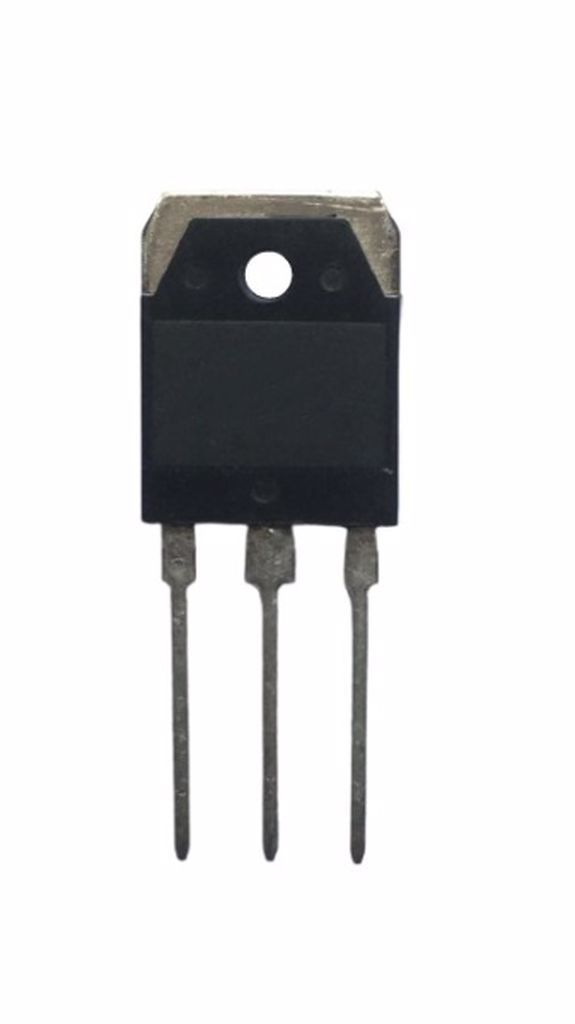

2SK2371 TO-3P 450V 25A 160W N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
10 Adet
Fiyat
2,80 USD + KDV
*10,78 TL den başlayan taksitlerle!
115,96 TL
2SK2371 TO-3P 450V 25A 160W N-CHANNEL MOSFET TRANSISTOR
2SK2371
Type Designator: 2SK2371
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 160 W
Maximum Drain-Source Voltage |Vds|: 450 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 25 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 95 nC
Rise Time (tr): 70 nS
Drain-Source Capacitance (Cd): 700 pF
Maximum Drain-Source On-State Resistance (Rds): 0.25 Ohm
Package: TO3P
Bu ürüne ilk yorumu siz yapın!
