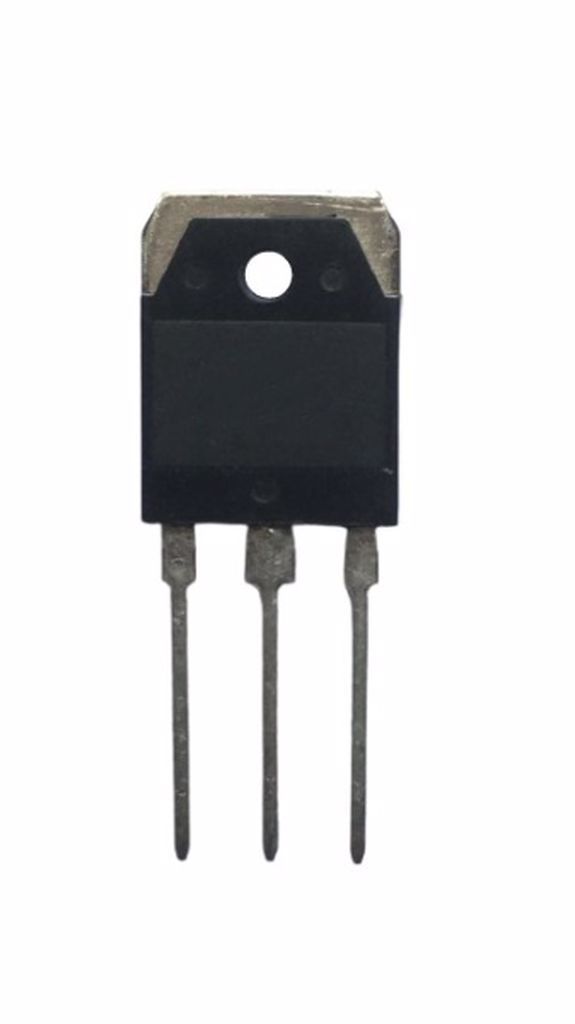

2SK2370 TO-3P 500V 20A 140W N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
13 Adet
Fiyat
2,60 USD + KDV
*10,01 TL den başlayan taksitlerle!
107,68 TL
2SK2370 TO-3P 500V 20A 140W N-CHANNEL MOSFET TRANSISTOR
2SK2370
Type Designator: 2SK2370
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 140 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 20 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 65 nC
Rise Time (tr): 60 nS
Drain-Source Capacitance (Cd): 500 pF
Maximum Drain-Source On-State Resistance (Rds): 0.4 Ohm
Package: TO3P
Bu ürüne ilk yorumu siz yapın!
