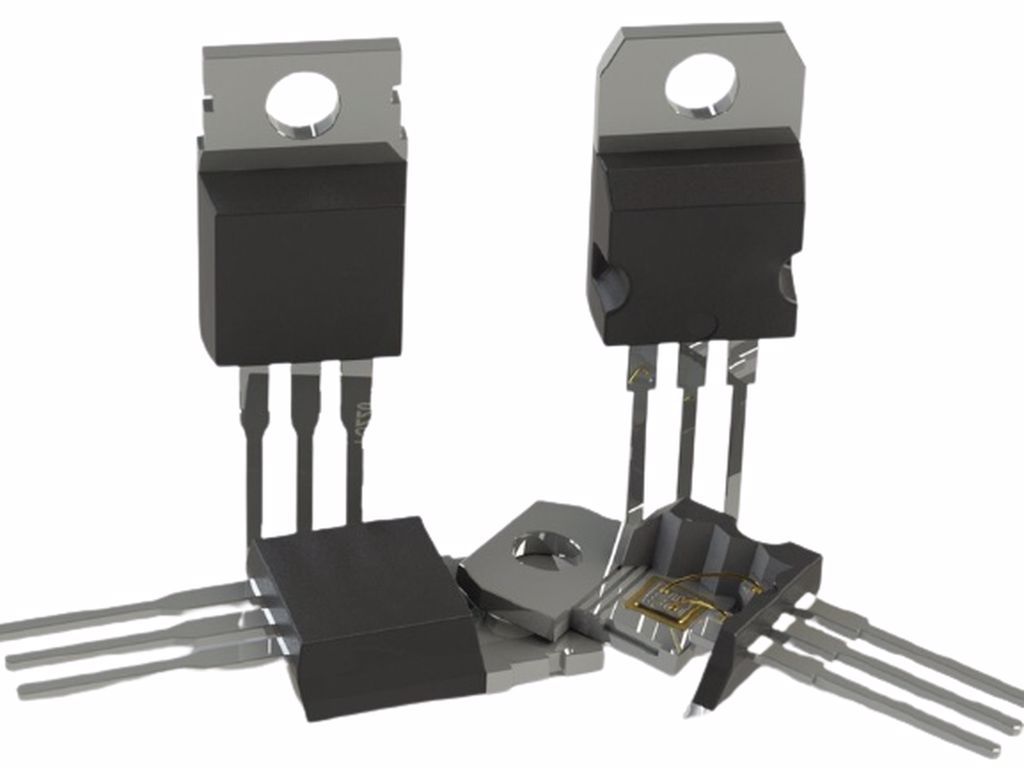

2SK2134 TO-220 200V 13A 70W N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
8 Adet
Fiyat
1,49 USD + KDV
*5,74 TL den başlayan taksitlerle!
61,71 TL
2SK2134 TO-220 200V 13A 700W N-CHANNEL MOSFET TRANSISTOR
2SK2134
Type Designator: 2SK2134
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 70 W
Maximum Drain-Source Voltage |Vds|: 200 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 13 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 15 nC
Rise Time (tr): 45 nS
Drain-Source Capacitance (Cd): 230 pF
Maximum Drain-Source On-State Resistance (Rds): 0.4 Ohm
Package: TO220
Bu ürüne ilk yorumu siz yapın!
