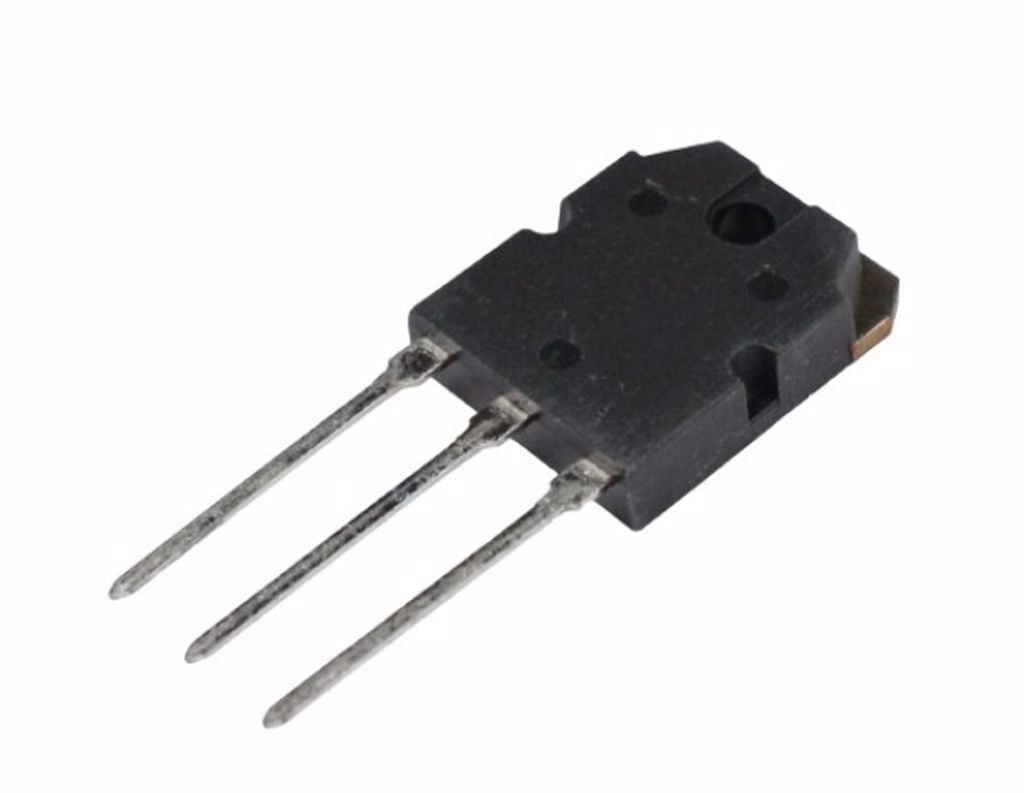

2SK2038 TO-3P 5A 800V 125W N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
6 Adet
Fiyat
0,87 USD + KDV
*3,35 TL den başlayan taksitlerle!
36,03 TL
2SK2038
Type Designator: 2SK2038
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 125 W
Maximum Drain-Source Voltage |Vds|: 800 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 5 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 30 nS
Drain-Source Capacitance (Cd): 110 pF
Maximum Drain-Source On-State Resistance (Rds): 1.8 Ohm
Package: SC65
