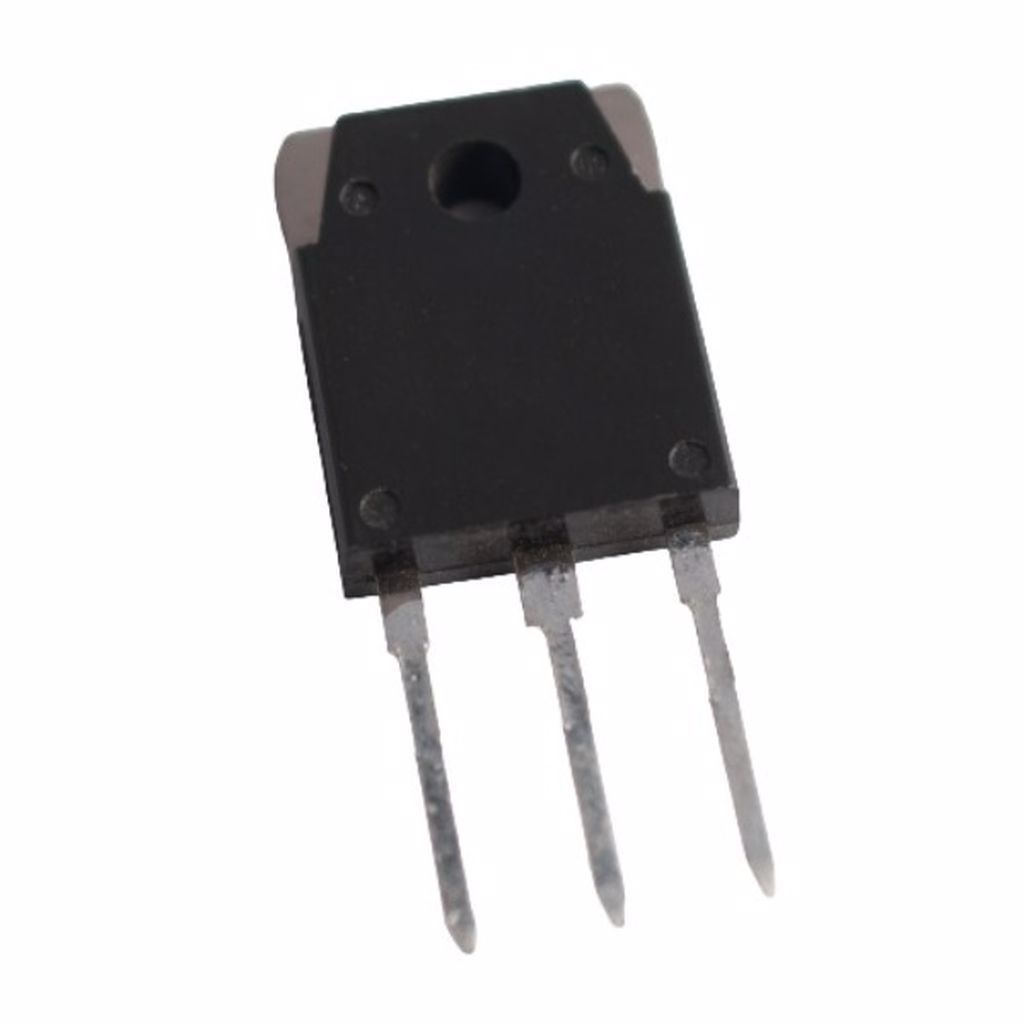

2SK1936 TO-3PN 500V 10A 100W N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
26 Adet
Fiyat
2,90 USD + KDV
*11,17 TL den başlayan taksitlerle!
120,10 TL
2SK1936 TO-3PN 500V 10A 100W N-CHANNEL MOSFET TRANSISTOR
2SK1936
Type Designator: 2SK1936
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 100 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3.5 V
Maximum Drain Current |Id|: 10 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 40 nS
Drain-Source Capacitance (Cd): 160 pF
Maximum Drain-Source On-State Resistance (Rds): 0.76 Ohm
Package: TO-3PN
Bu ürüne ilk yorumu siz yapın!
