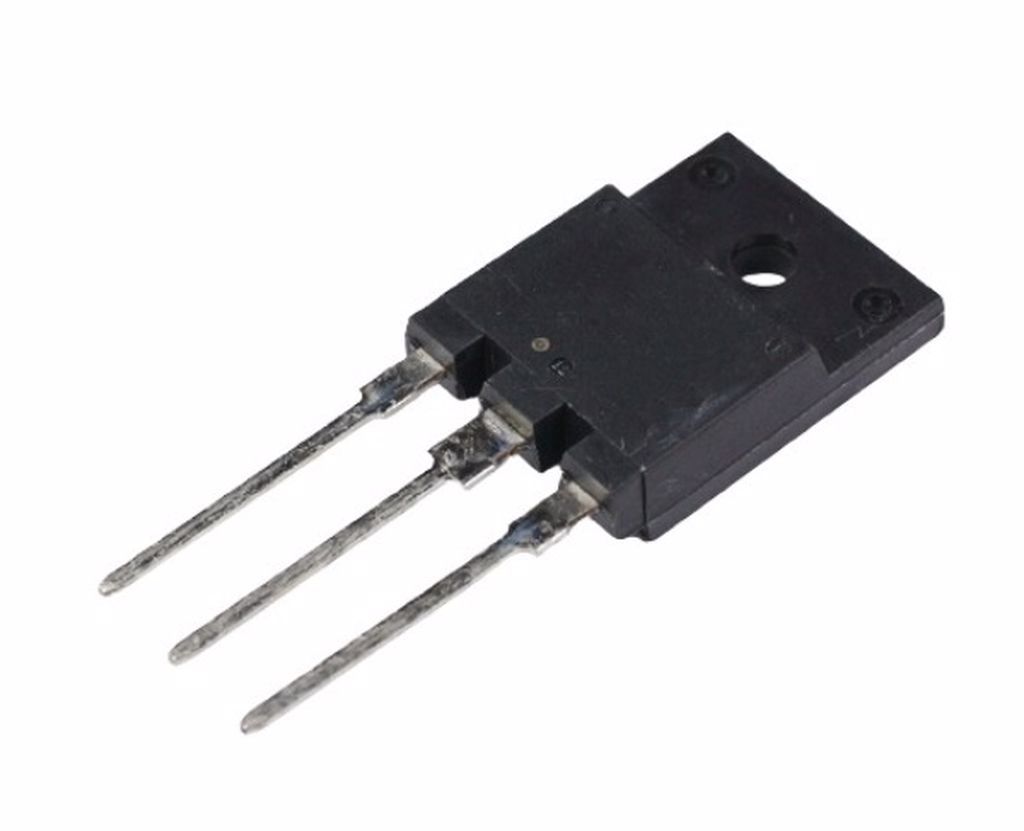

2SK1916 TO-3PML 450V 18A 80W N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
16 Adet
Fiyat
2,90 USD + KDV
*11,17 TL den başlayan taksitlerle!
120,10 TL
2SK1916 TO-3PML 450V 18A 80W N-CHANNEL MOSFET TRANSISTOR
2SK1916
Type Designator: 2SK1916
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 80 W
Maximum Drain-Source Voltage |Vds|: 450 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 18 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 100 nS
Drain-Source Capacitance (Cd): 270 pF
Maximum Drain-Source On-State Resistance (Rds): 0.45 Ohm
Package: TO-3PML
