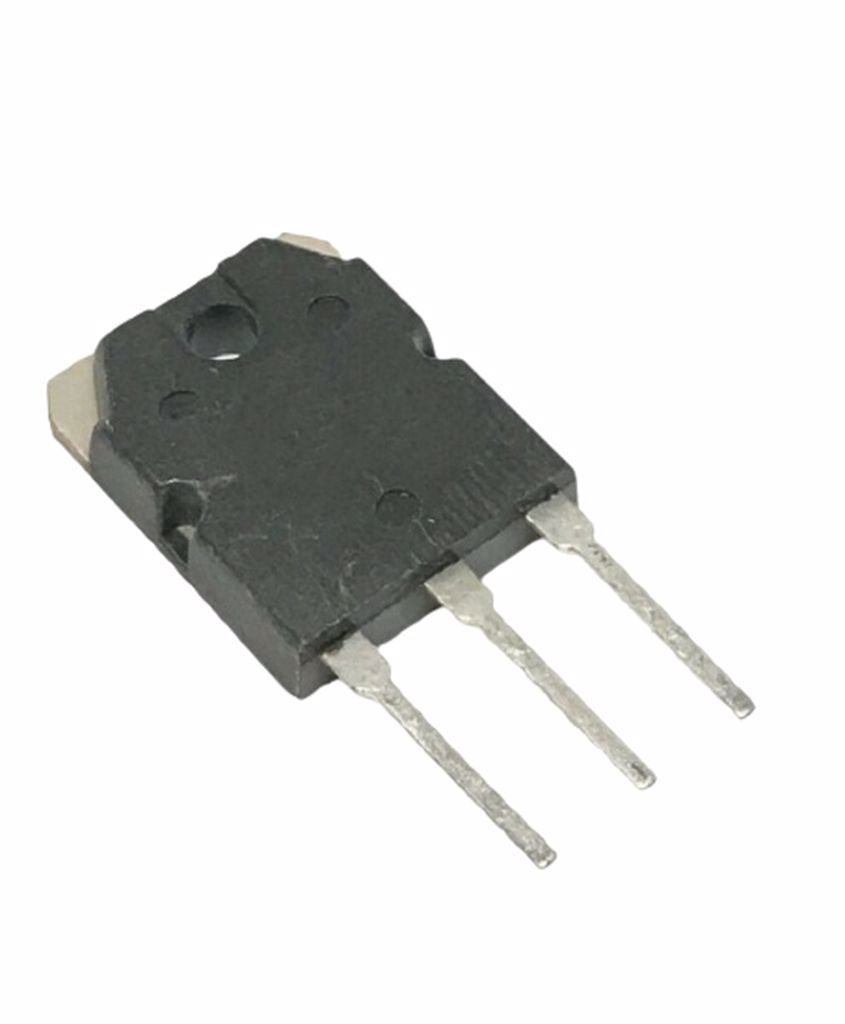

2SK1835 TO-3P 1500V 4A 125W N-CHANNEL MOSFET
0 - Yorum
Kategori
Kalan Adet
16 Adet
Fiyat
4,60 USD + KDV
*17,65 TL den başlayan taksitlerle!
189,86 TL
2SK1835 TO-3P 1500V 4A 125W N-CHANNEL MOSFET
2SK1835
Type Designator: 2SK1835
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 125 W
Maximum Drain-Source Voltage |Vds|: 1500 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 4 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 80 nS
Drain-Source Capacitance (Cd): 230 pF
Maximum Drain-Source On-State Resistance (Rds): 7 Ohm
Package: TO3P
