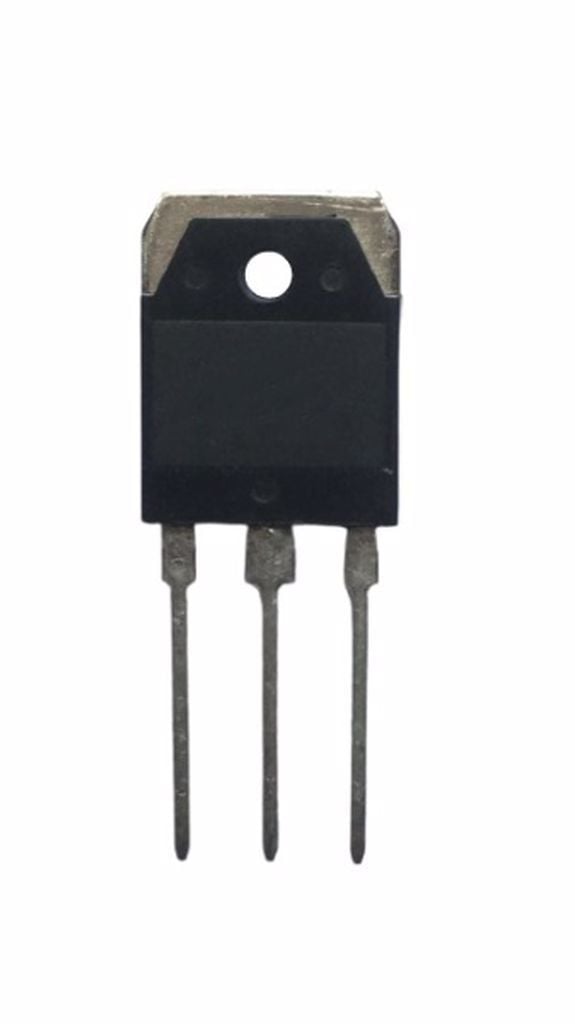

2SK1794 TO-3P 900V 6A 100W N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
33 Adet
Fiyat
1,36 USD + KDV
*5,24 TL den başlayan taksitlerle!
56,32 TL
2SK1794 TO-3P 900V 6A 100W N-CHANNEL MOSFET TRANSISTOR
2SK1794
Type Designator: 2SK1794
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 100 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 6 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 42 nC
Rise Time (tr): 30 nS
Drain-Source Capacitance (Cd): 170 pF
Maximum Drain-Source On-State Resistance (Rds): 2.8 Ohm
Package: TO3P
Bu ürüne ilk yorumu siz yapın!
