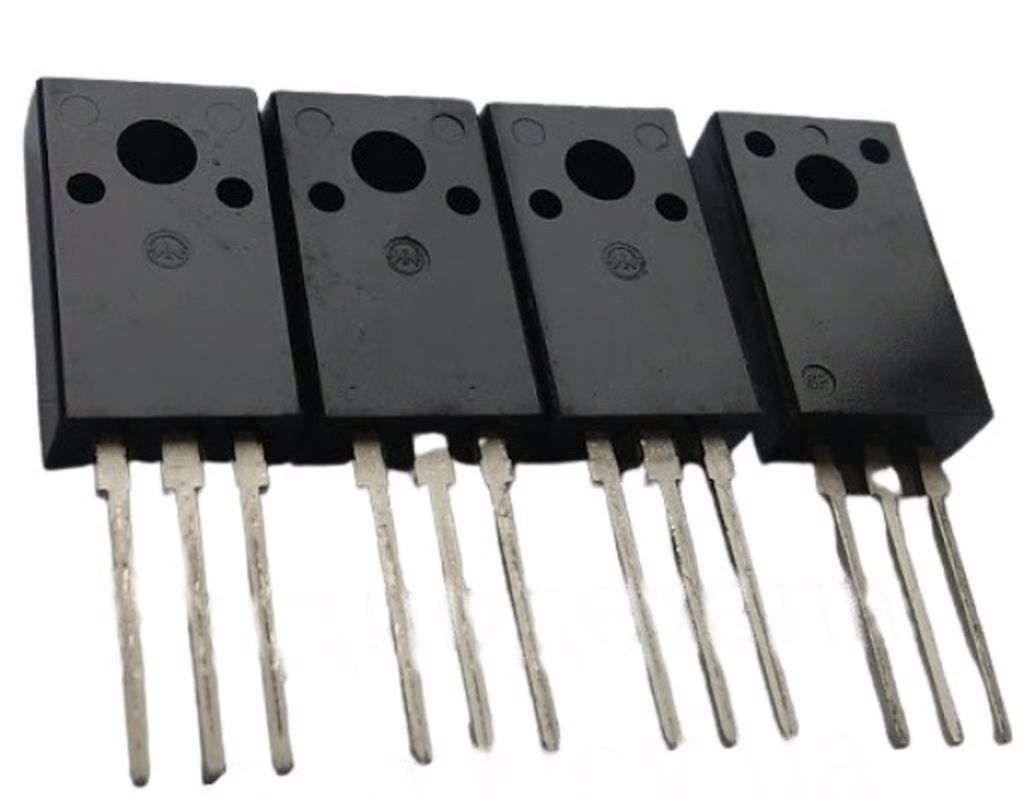

2SK1535 TO-220F 900V 3A 30W N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
13 Adet
Fiyat
1,98 USD + KDV
*7,62 TL den başlayan taksitlerle!
82,00 TL
2SK1535 TO-220F 900V 3A 30W N-CHANNEL MOSFET TRANSISTOR
2SK1535
Type Designator: 2SK1535
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 30 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 3 A
Maximum Junction Temperature (Tj): 150 °C
Turn-on Time (ton): 45 nS
Drain-Source Capacitance (Cd): 130 pF
Maximum Drain-Source On-State Resistance (Rds): 5 Ohm
Package: TO220F
