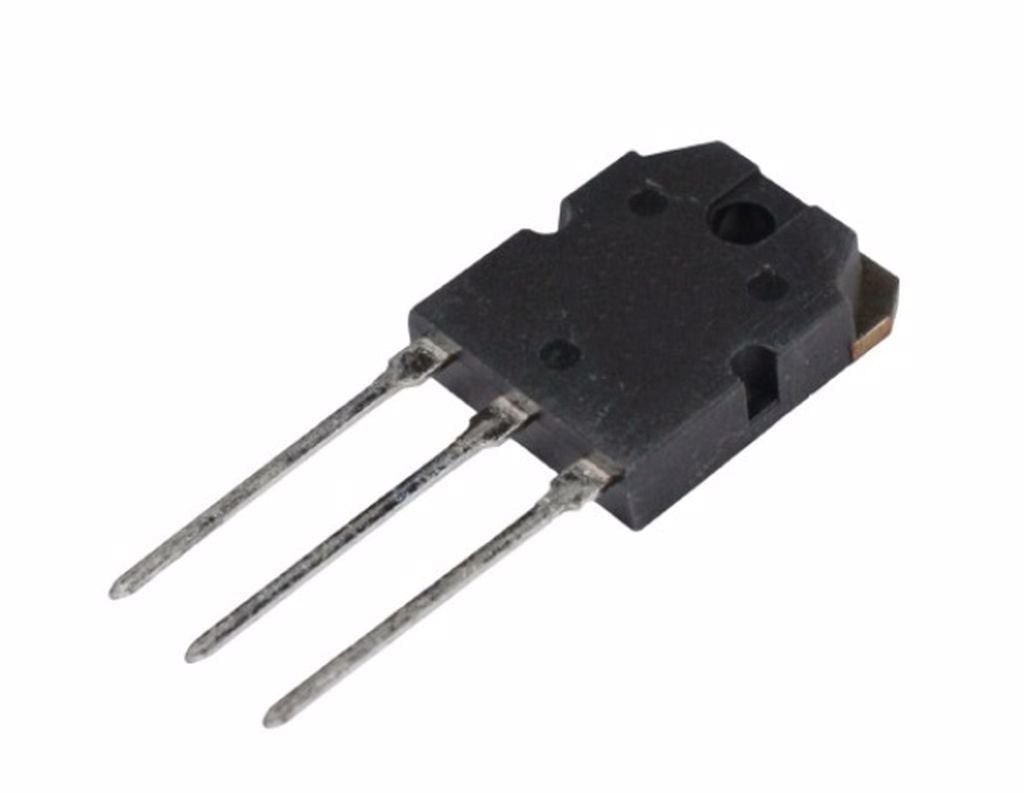

2SK1531 TO-3P 15A 500V 150W 0.38Ω N-CHANNEL MOSFET
0 - Yorum
Kategori
Kalan Adet
9 Adet
Fiyat
3,40 USD + KDV
*13,09 TL den başlayan taksitlerle!
140,81 TL
2SK1531 TO-3P 15A 500V 150W 0.38Ω N-CHANNEL MOSFET
2SK1531
Type Designator: 2SK1531
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 150 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 15 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 60 nC
Rise Time (tr): 90 nS
Drain-Source Capacitance (Cd): 400 pF
Maximum Drain-Source On-State Resistance (Rds): 0.38 Ohm
Package: SC65
