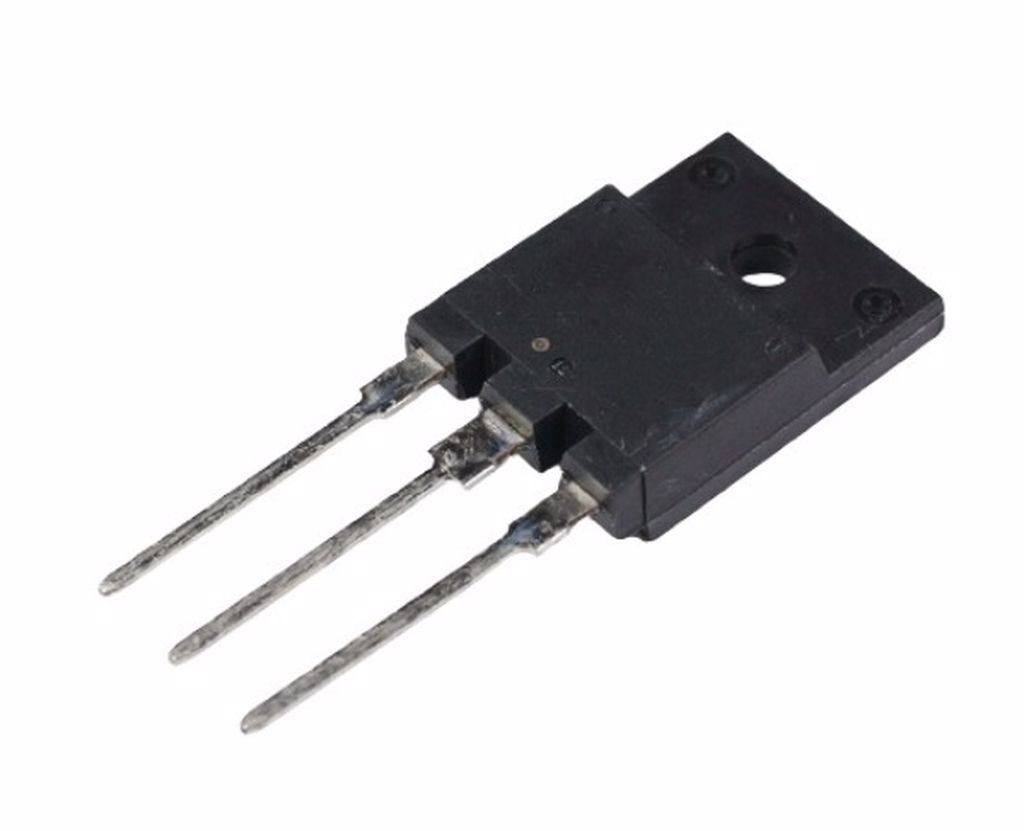

2SK1523 TO-3PF 500V 10A 55W N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
23 Adet
Fiyat
2,40 USD + KDV
*9,24 TL den başlayan taksitlerle!
99,39 TL
2SK1523 TO-3PF 500V 10A 55W N-CHANNEL MOSFET TRANSISTOR
2SK1523
Type Designator: 2SK1523
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 55 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 10 A
Maximum Junction Temperature (Tj): 150 °C
Turn-on Time (ton): 70 nS
Drain-Source Capacitance (Cd): 310 pF
Maximum Drain-Source On-State Resistance (Rds): 0.7 Ohm
Package: TO3PF
