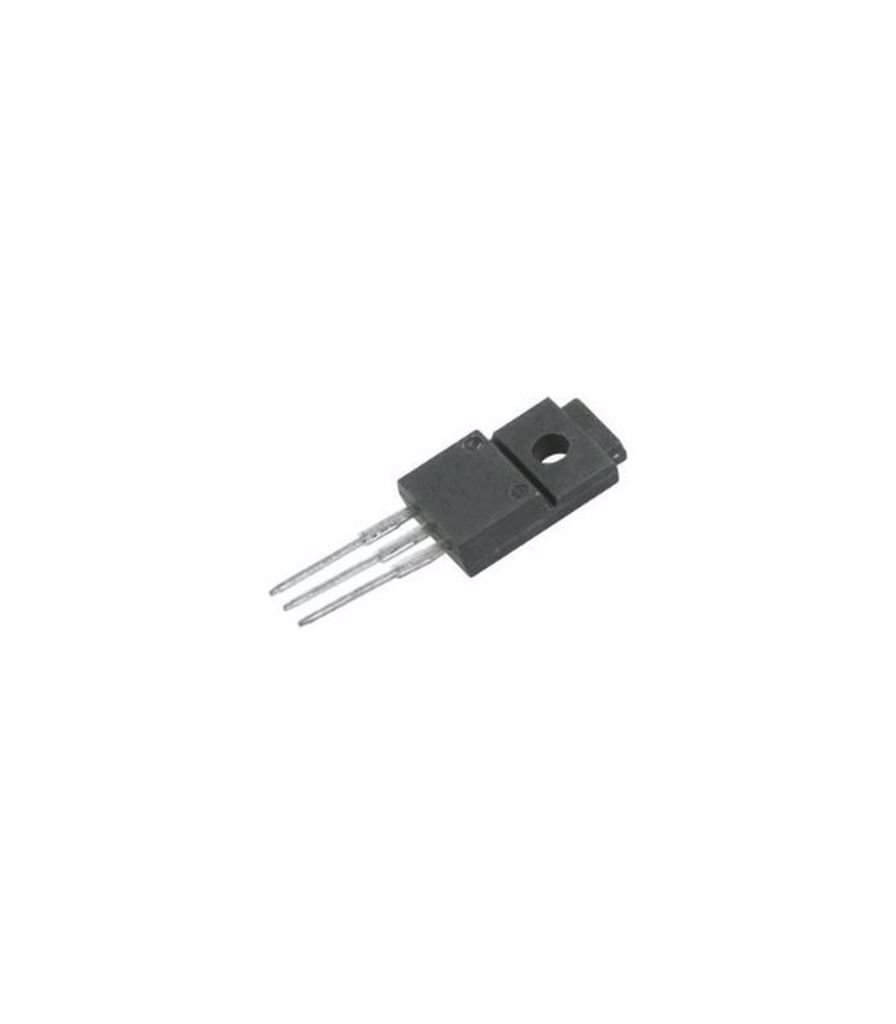

2SK1306 TO-220FM 100V 15A 30W N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
4 Adet
Fiyat
1,85 USD + KDV
*7,10 TL den başlayan taksitlerle!
76,36 TL
2SK1306 TO-220FM 100V 15A 30W N-CHANNEL MOSFET TRANSISTOR
2SK1306
Type Designator: 2SK1306
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 30 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 15 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 70 nS
Drain-Source Capacitance (Cd): 340 pF
Maximum Drain-Source On-State Resistance (Rds): 0.13 Ohm
Package: TO220FM
