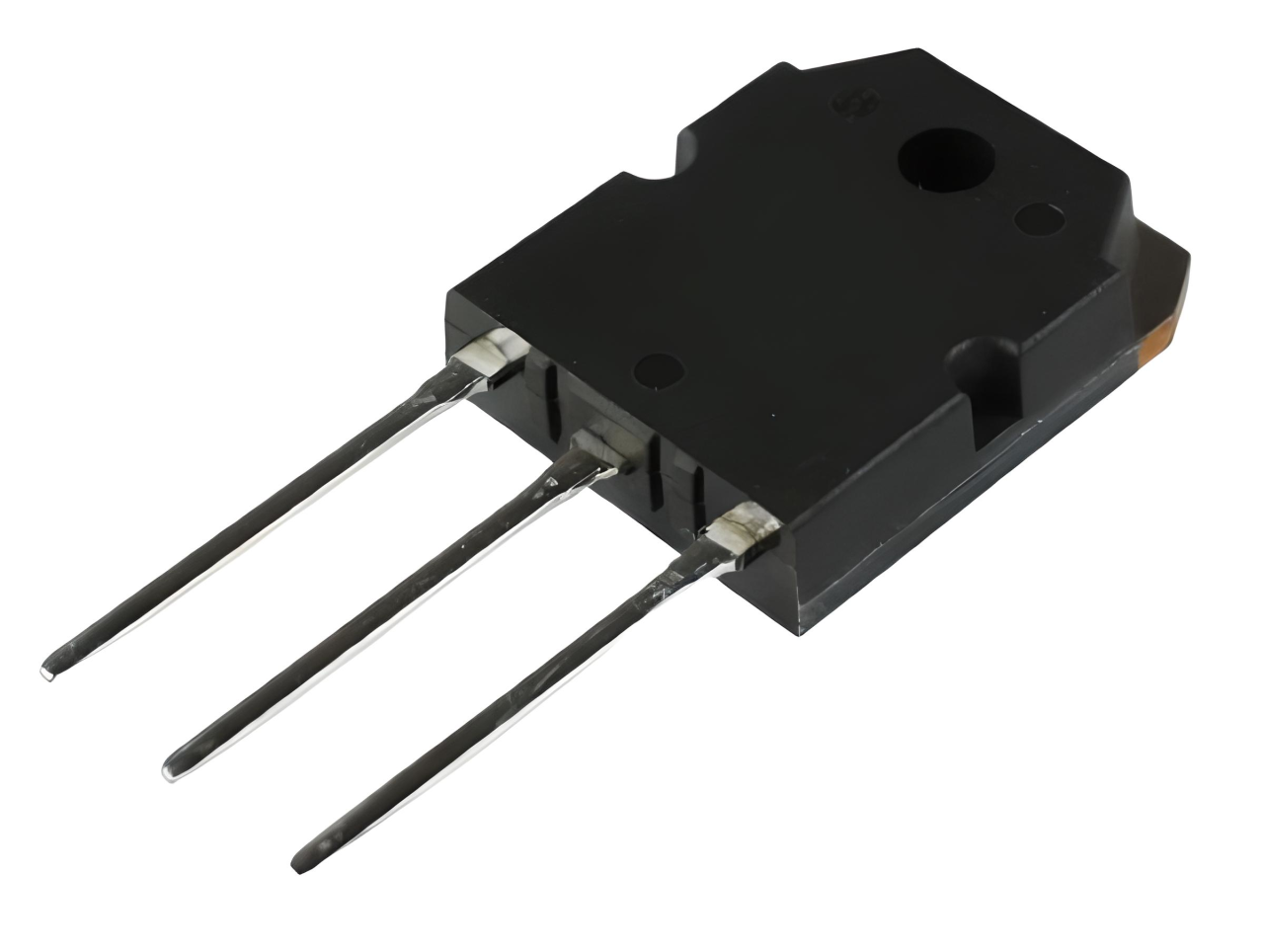

2SK1120 TO-3PN 8A 1000V 150W 1.8Ω N-CHANNEL MOSFET TRANSISTOR
2SK1120 MOSFET
Type Designator: 2SK1120
Marking Code: K1120
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 150 W
Maximum Drain-Source Voltage |Vds|: 1000 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3.5 V
Maximum Drain Current |Id|: 8 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 120 nC
Rise Time (tr): 25 nS
Drain-Source Capacitance (Cd): 180 pF
Maximum Drain-Source On-State Resistance (Rds): 1.8 Ohm
Package: TO3P
