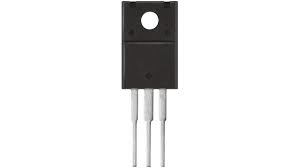

2SJ308 TO-220ML 9A 250V MOSFET
0 - Yorum
Kategori
Kalan Adet
20 Adet
Fiyat
1,99 USD + KDV
*7,66 TL den başlayan taksitlerle!
82,41 TL
2SJ308
Type Designator: 2SJ308
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Maximum Power Dissipation (Pd): 40 W
Maximum Drain-Source Voltage |Vds|: 250 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 9 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 75 nS
Drain-Source Capacitance (Cd): 500 pF
Maximum Drain-Source On-State Resistance (Rds): 0.48 Ohm
Package: TO220ML
