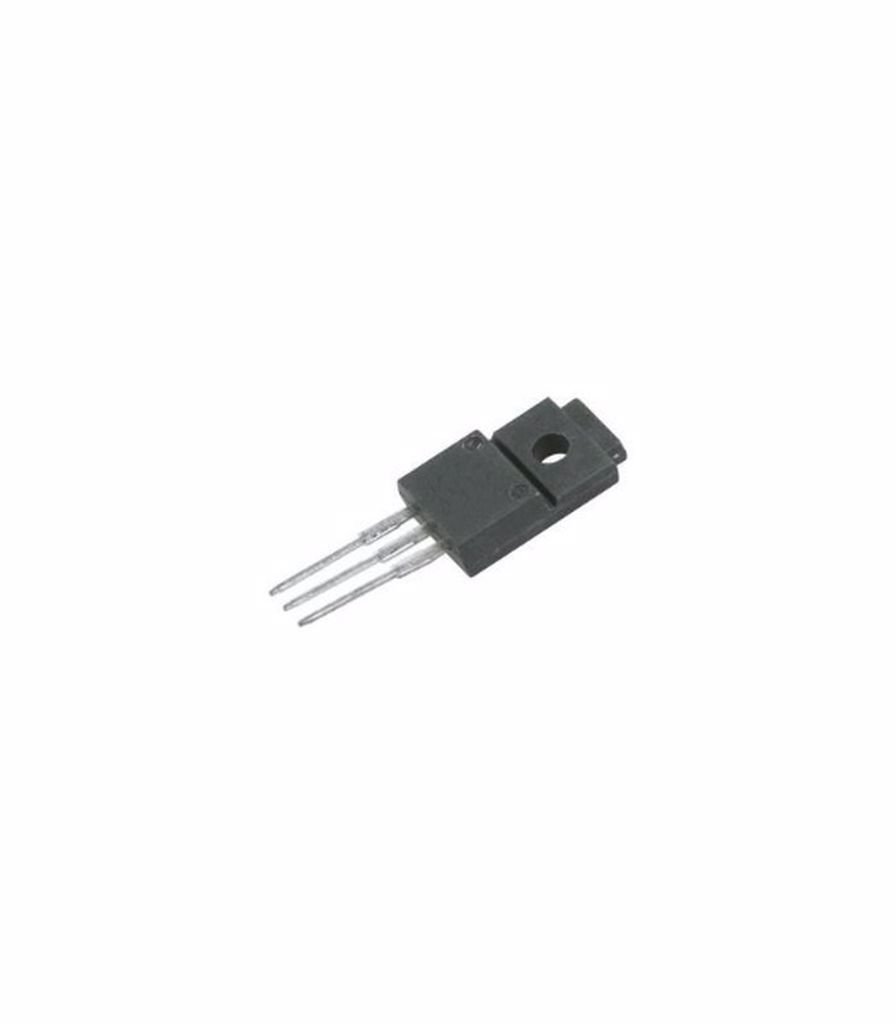

2SJ175 TO-220FM 10A 60V 180mΩ 25W P-CHANNEL MOSFET
0 - Yorum
Kategori
Kalan Adet
17 Adet
Fiyat
1,40 USD + KDV
*5,39 TL den başlayan taksitlerle!
57,98 TL
2SJ175 MOSFET
Type Designator: 2SJ175
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Maximum Power Dissipation (Pd): 25 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 10 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 65 nS
Drain-Source Capacitance (Cd): 460 pF
Maximum Drain-Source On-State Resistance (Rds): 0.13 Ohm
Package: TO220FM
Bu ürüne ilk yorumu siz yapın!
