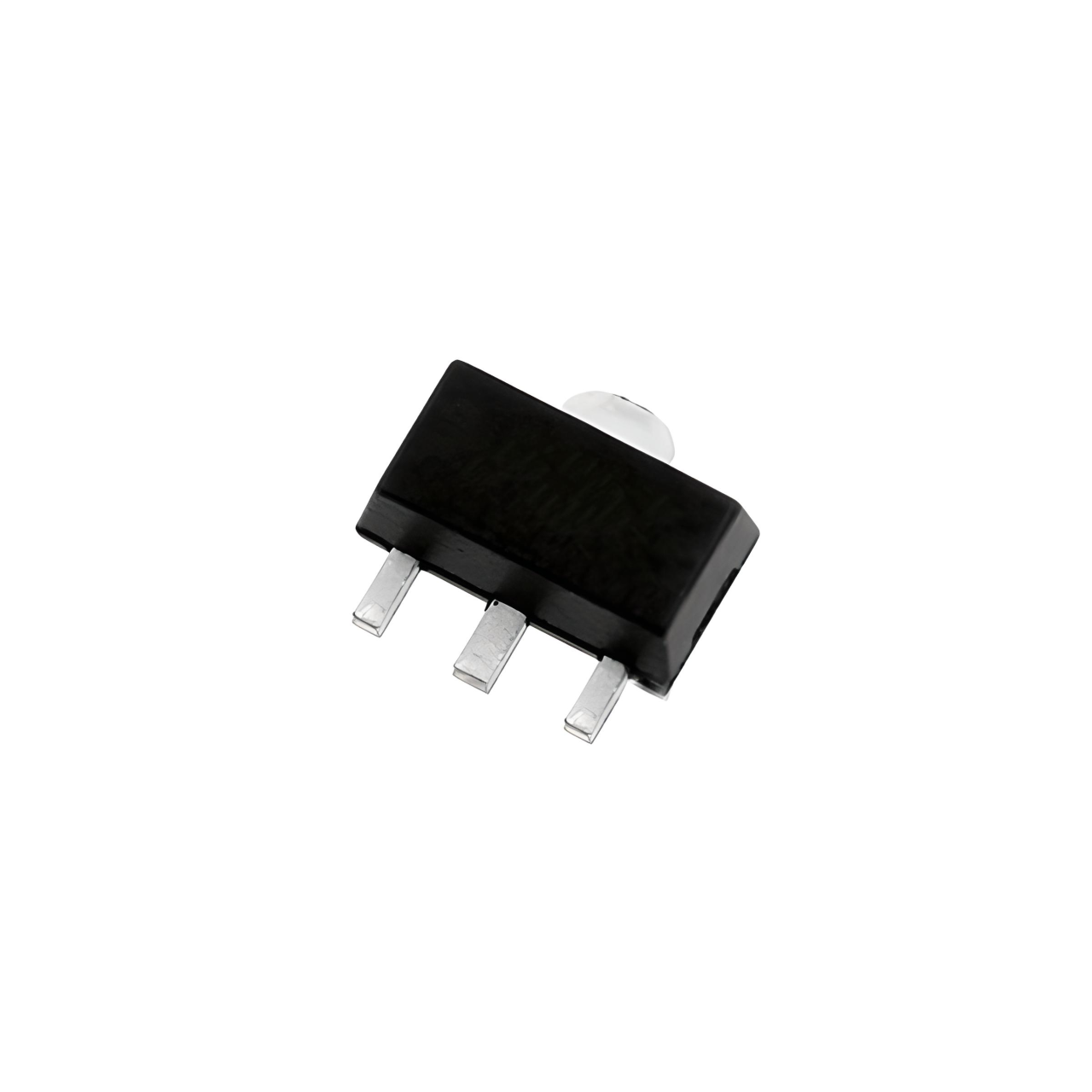

2SD965 SOT-89 5A 40V 0.5W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
33 Adet
Fiyat
0,16 USD + KDV
*0,62 TL den başlayan taksitlerle!
6,63 TL
2SD965 SOT-89 5A 40V 0.5W NPN TRANSISTOR
2SD965
Type Designator: 2SD965-Q
SMD Transistor Code: D965Q
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.5 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 20 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 150 MHz
Collector Capacitance (Cc): 50 pF
Forward Current Transfer Ratio (hFE), MIN: 230
Package: SOT89
