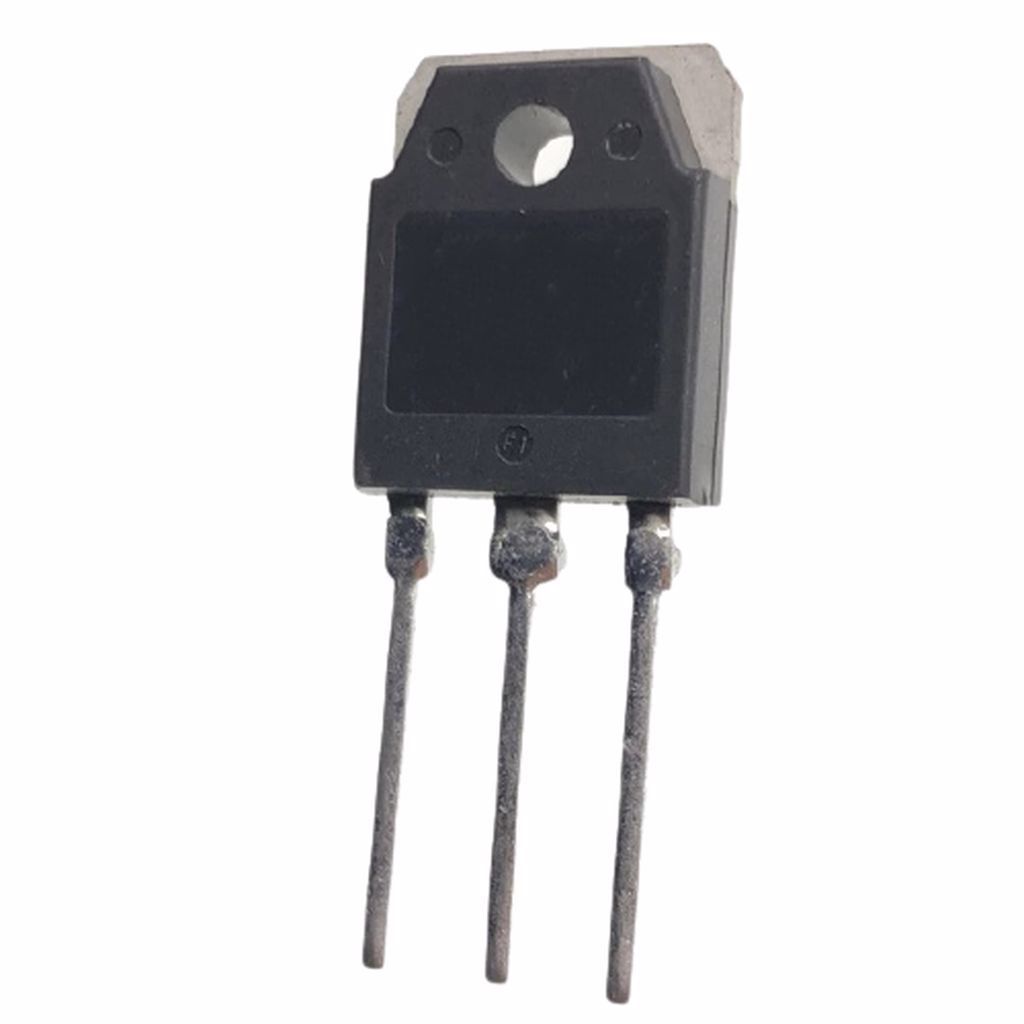

2SD921 TO-3P 5A 200V 80W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
10 Adet
Fiyat
3,30 USD + KDV
*12,71 TL den başlayan taksitlerle!
136,67 TL
2SD921 TO-3P 5A 200V 80W NPN TRANSISTOR
2SD921
Type Designator: 2SD921
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 80 W
Maximum Collector-Base Voltage |Vcb|: 200 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 12 MHz
Collector Capacitance (Cc): 35 pF
Forward Current Transfer Ratio (hFE), MIN: 700
Package: TOP3
