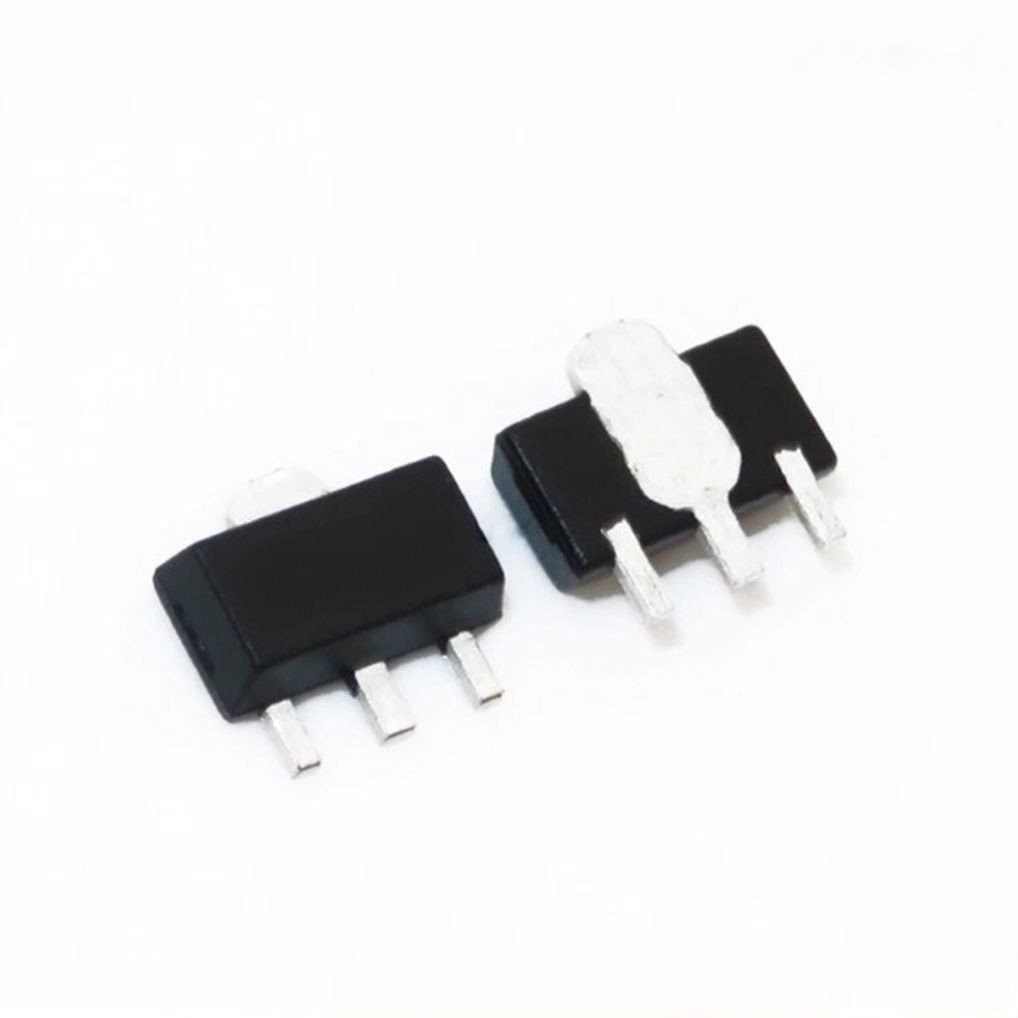

2SD882 SOT-89 3A 40V NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
60 Adet
Fiyat
0,19 USD + KDV
*0,73 TL den başlayan taksitlerle!
7,87 TL
2SD882 SOT-89 3A 40V NPN TRANSISTOR
2SD882
Type Designator: 2SD882GP
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 1.5 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 30 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 100 MHz
Collector Capacitance (Cc): 55 pF
Forward Current Transfer Ratio (hFE), MIN: 100
Package: SOT89
