2SD870 TO-3 5A 1500V 50W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
11 Adet
Fiyat
2,15 USD + KDV
*8,28 TL den başlayan taksitlerle!
89,04 TL
2SD870
Type Designator: 2SD870
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 50 W
Maximum Collector-Base Voltage |Vcb|: 1500 V
Maximum Collector-Emitter Voltage |Vce|: 600 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 1 MHz
Collector Capacitance (Cc): 95 pF
Forward Current Transfer Ratio (hFE), MIN: 8

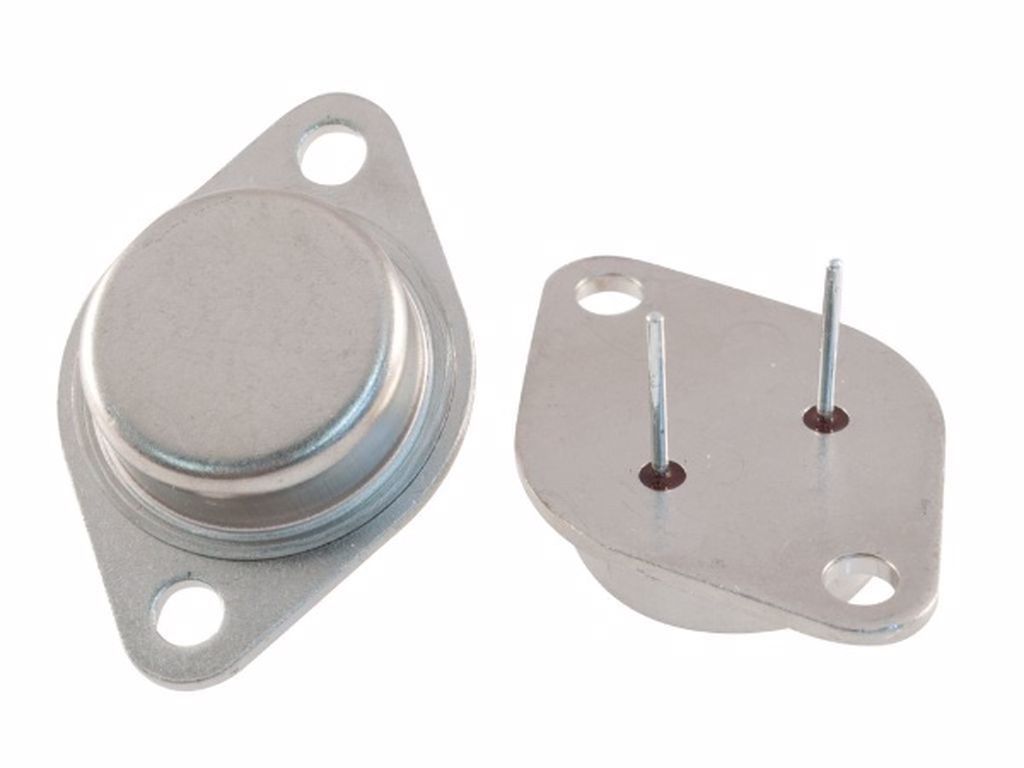

Package: TO3
Bu ürüne ilk yorumu siz yapın!
