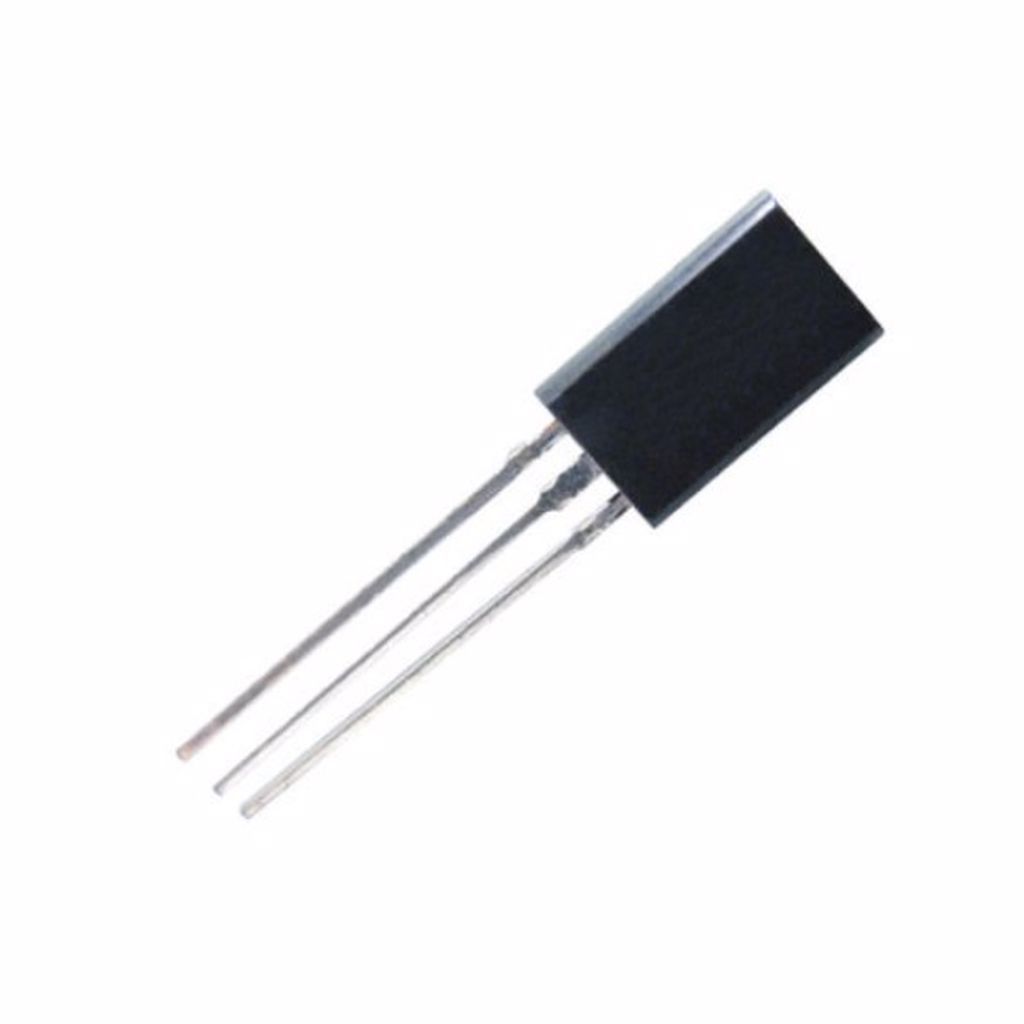

2SD787 TO-92L 2A 20V 0.9W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
599 Adet
Fiyat
0,25 USD + KDV
*0,96 TL den başlayan taksitlerle!
10,31 TL
2SD787 TO-92L 2A 20V 0.9W NPN TRANSISTOR
2SD787
Type Designator: 2SD787
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.9 W
Maximum Collector-Base Voltage |Vcb|: 20 V
Maximum Collector-Emitter Voltage |Vce|: 16 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 80 MHz
Collector Capacitance (Cc): 20 pF
Forward Current Transfer Ratio (hFE), MIN: 100
Package: TO92
Bu ürüne ilk yorumu siz yapın!
