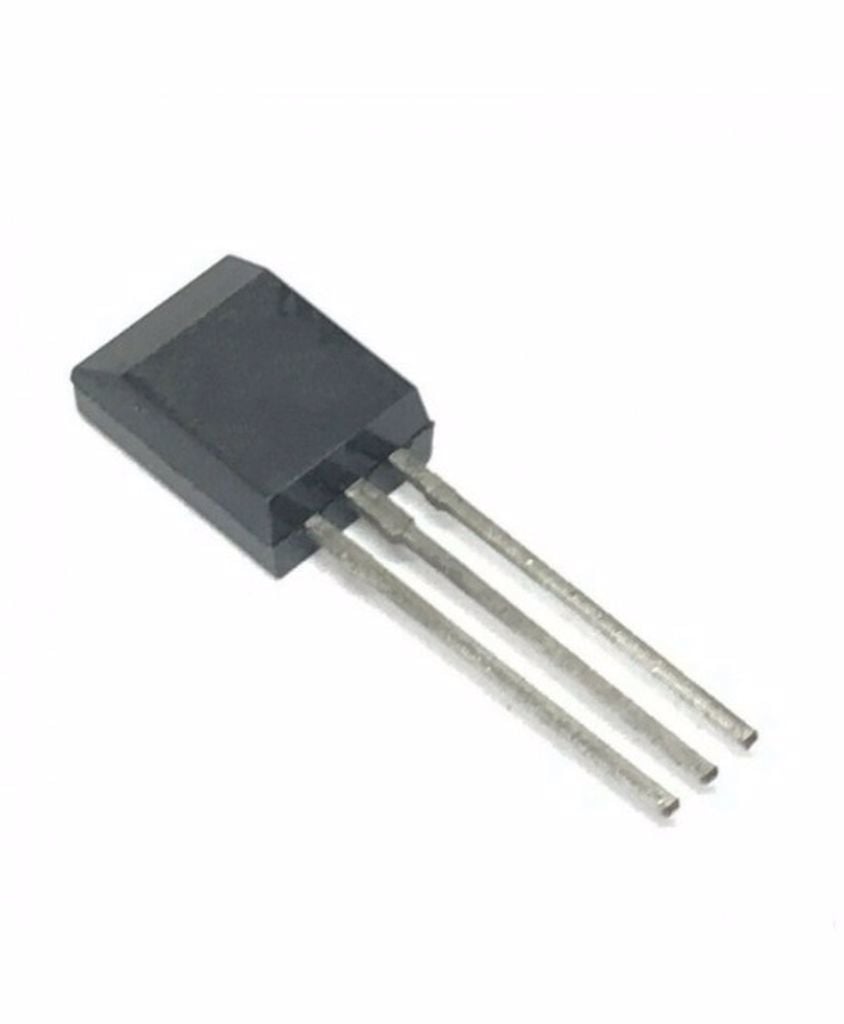

2SD773 TO-92 2A 20V 1W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
115 Adet
Fiyat
0,08 USD + KDV
*0,31 TL den başlayan taksitlerle!
3,30 TL
2SD773 TO-92 2A 20V 1W NPN TRANSISTOR
2SD773
Type Designator: 2SD773
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 1 W
Maximum Collector-Base Voltage |Vcb|: 20 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 110 MHz
Collector Capacitance (Cc): 16 pF
Forward Current Transfer Ratio (hFE), MIN: 250
Package: X73
