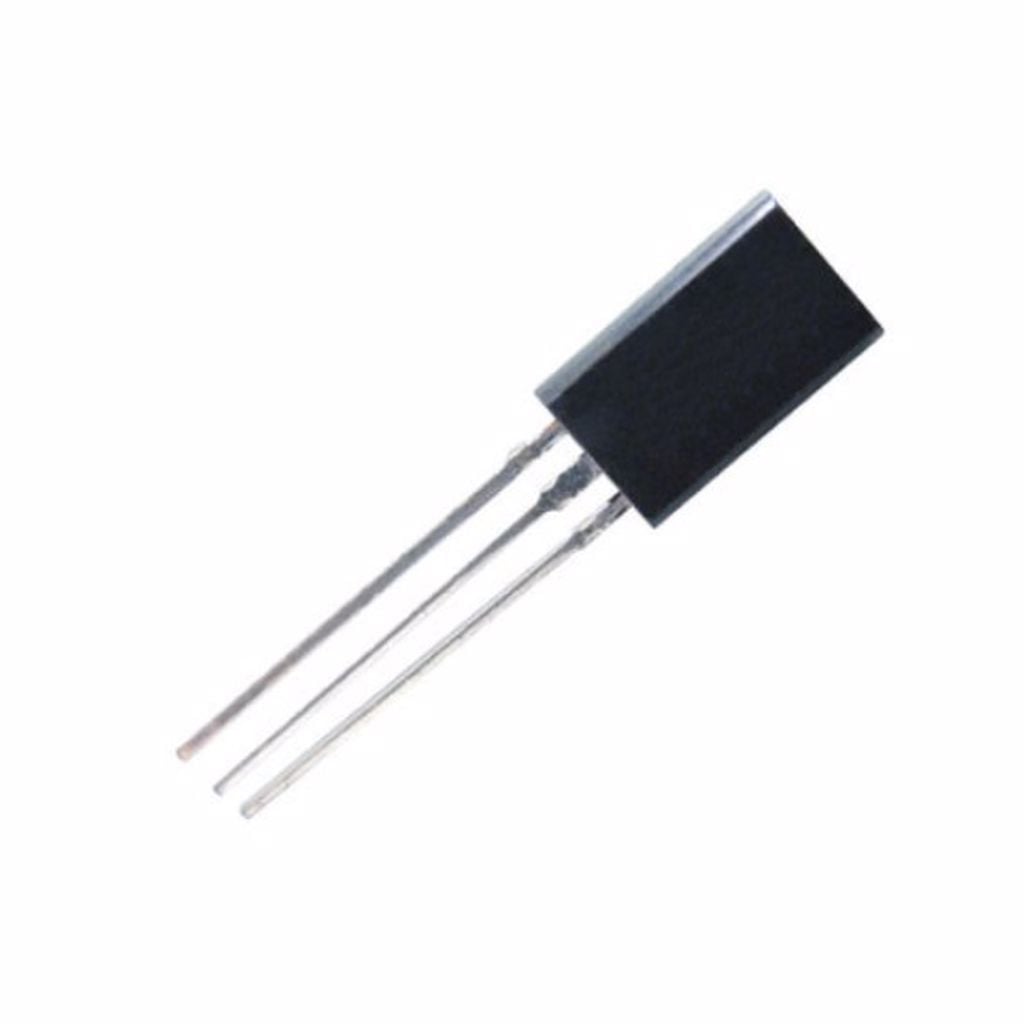

2SD756ADTZ TO-92L NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
4 Adet
Fiyat
0,59 USD + KDV
*2,27 TL den başlayan taksitlerle!
24,43 TL
2SD756ADTZ TO-92L NPN TRANSISTOR
2SD756
Type Designator: 2SD756A
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.75 W
Maximum Collector-Base Voltage |Vcb|: 140 V
Maximum Collector-Emitter Voltage |Vce|: 120 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.05 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 350 MHz
Collector Capacitance (Cc): 1.6 pF
Forward Current Transfer Ratio (hFE), MIN: 250
Package: TO92
