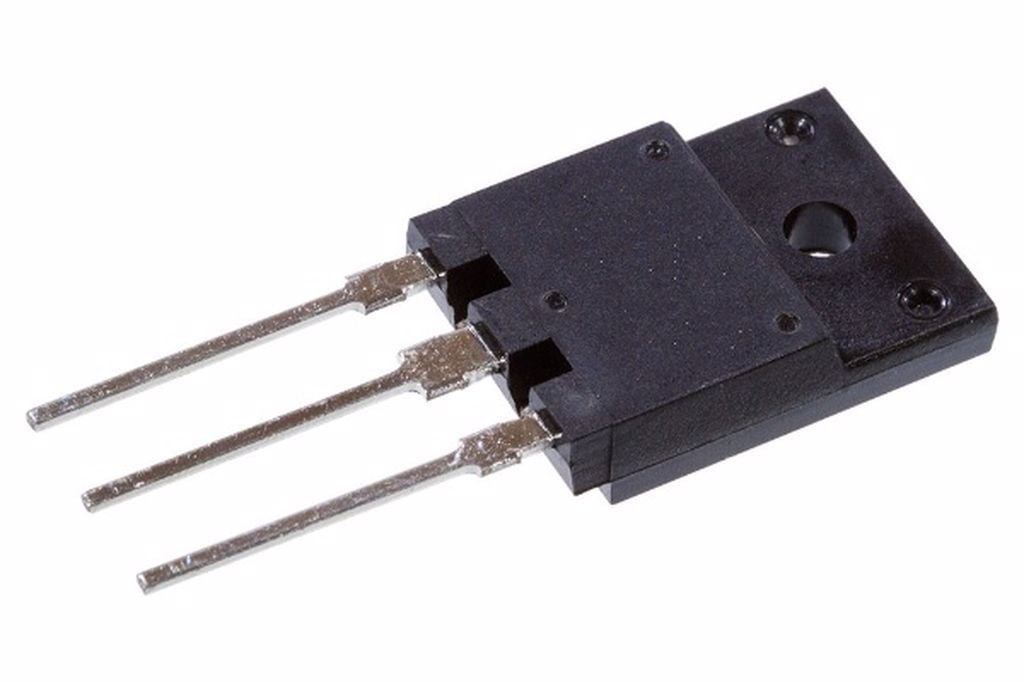

2SD2439A TO-3PF 10A 150V NPN DARLINGTON TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
10 Adet
Fiyat
3,40 USD + KDV
*13,03 TL den başlayan taksitlerle!
140,19 TL
2SD2439A TO-3PF 10A 150V NPN DARLINGTON TRANSISTOR
2SD2439
Type Designator: 2SD2439
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 80 W
Maximum Collector-Base Voltage |Vcb|: 160 V
Maximum Collector-Emitter Voltage |Vce|: 150 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 55 MHz
Forward Current Transfer Ratio (hFE), MIN: 5000
Package: TO3PF
