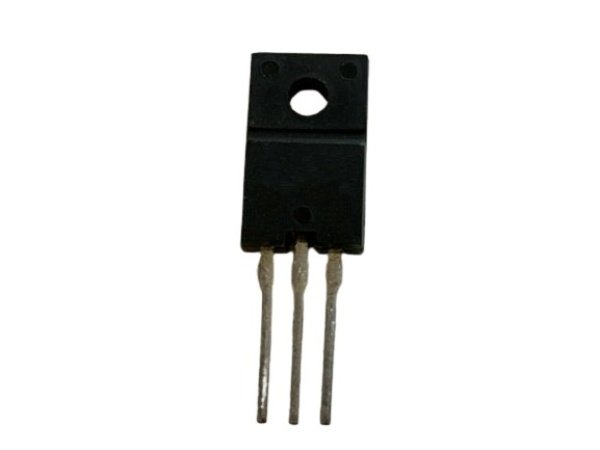

2SD2136 MT-3 3A 60V 1.5W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
4 Adet
Fiyat
0,49 USD + KDV
*1,88 TL den başlayan taksitlerle!
20,20 TL
2SD2136 MT-3 3A 60V 1.5W NPN TRANSISTOR
2SD2136
Type Designator: 2SD2136
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 1.5 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 150 °C
Forward Current Transfer Ratio (hFE), MIN: 30
Package: TO126
