2SD1978 TO-92 1.5A 120V 0.9W NPN DARLINGTON TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
15 Adet
Fiyat
1,85 USD + KDV
*7,12 TL den başlayan taksitlerle!
76,62 TL
2SD1978 TO-92 1.5A 120V 0.9W NPN TRANSISTOR
2SD1978
Type Designator: 2SD1978
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.9 W
Maximum Collector-Base Voltage |Vcb|: 120 V
Maximum Collector Current |Ic max|: 1.5 A
Max. Operating Junction Temperature (Tj): 150 °C
Forward Current Transfer Ratio (hFE), MIN: 10000

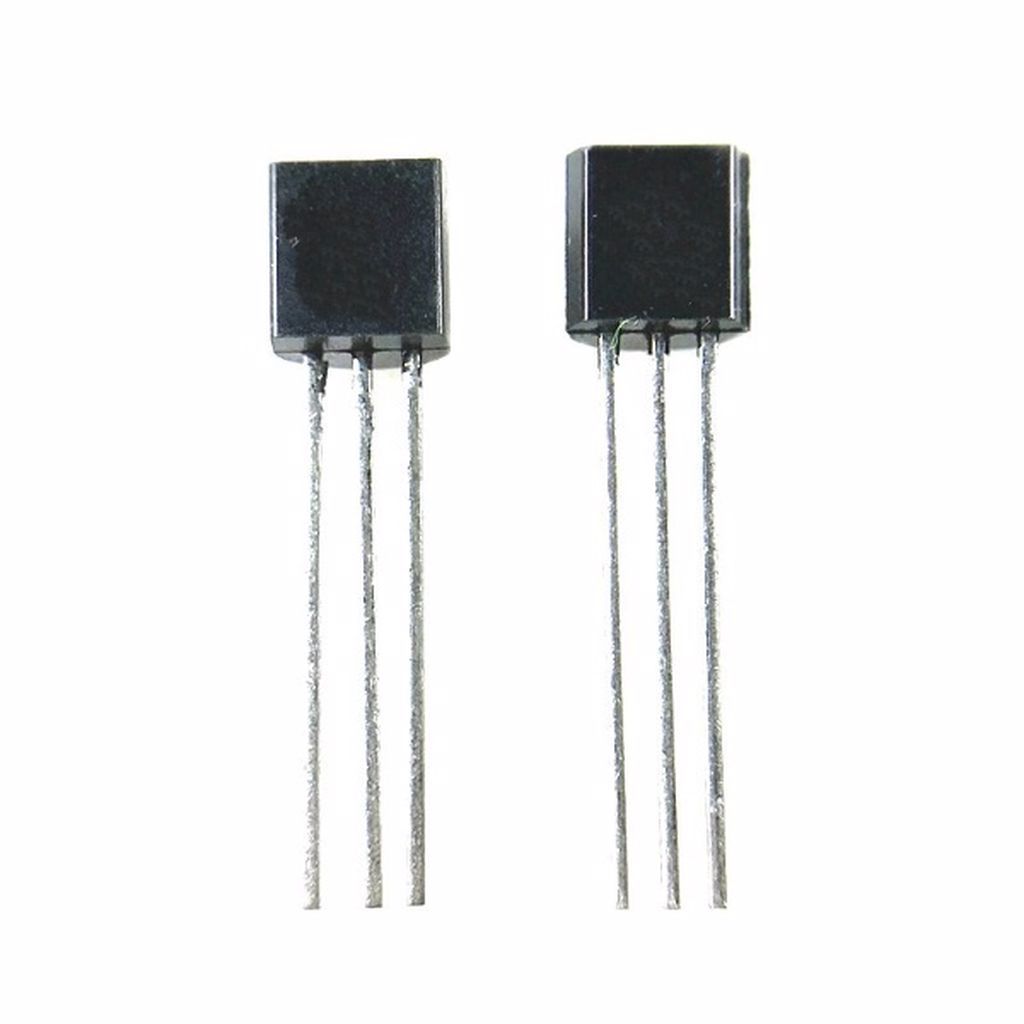

Package: TO92
