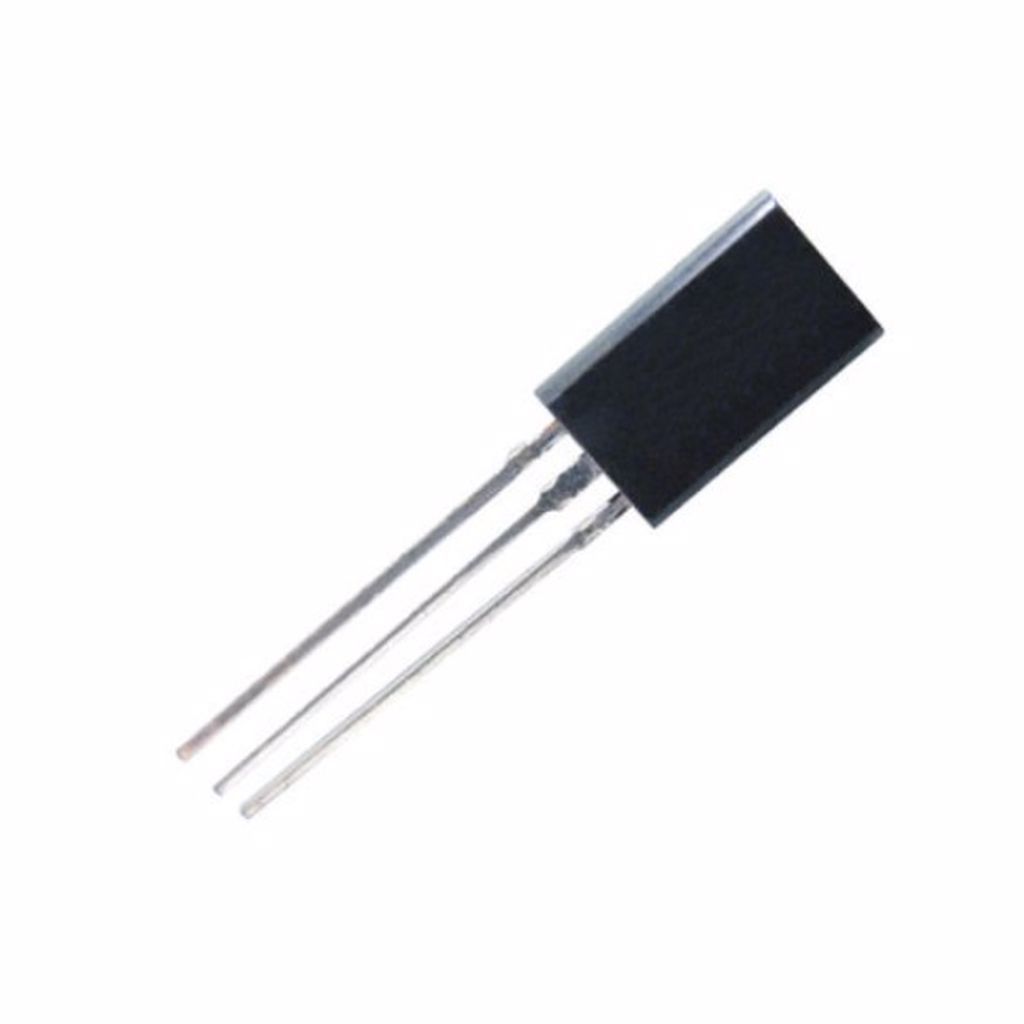

2SD1857TV2R TO-92L 2A 120V 1W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
33 Adet
Fiyat
1,50 USD + KDV
*5,75 TL den başlayan taksitlerle!
61,83 TL
2SD1857TV2R TO-92L 2A 120V 1W NPN TRANSISTOR
Type Designator: 2SD1857
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 1 W
Maximum Collector-Base Voltage |Vcb|: 120 V
Maximum Collector-Emitter Voltage |Vce|: 120 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 80(typ) MHz
Collector Capacitance (Cc): 20 pF
Forward Current Transfer Ratio (hFE), MIN: 82
Noise Figure, dB: -
Package: ATV
Type Designator: 2SD1857
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 1 W
Maximum Collector-Base Voltage |Vcb|: 120 V
Maximum Collector-Emitter Voltage |Vce|: 120 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 80(typ) MHz
Collector Capacitance (Cc): 20 pF
Forward Current Transfer Ratio (hFE), MIN: 82
Noise Figure, dB: -
Package: ATV
Bu ürüne ilk yorumu siz yapın!
